نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump ecodos®
برند:
LEWA GmbH
مشخصات:

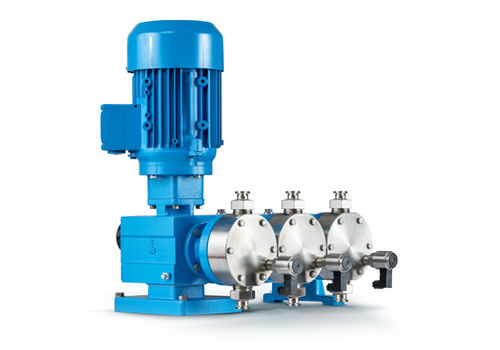

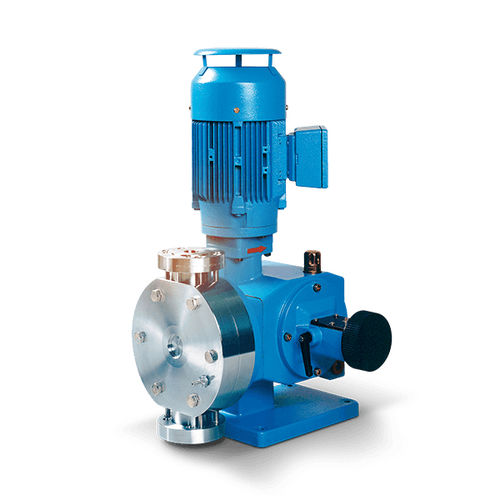

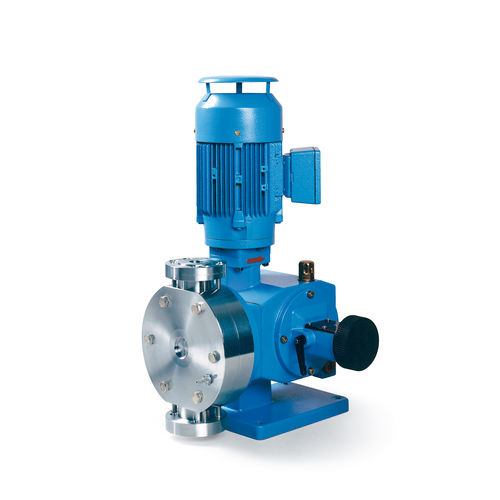

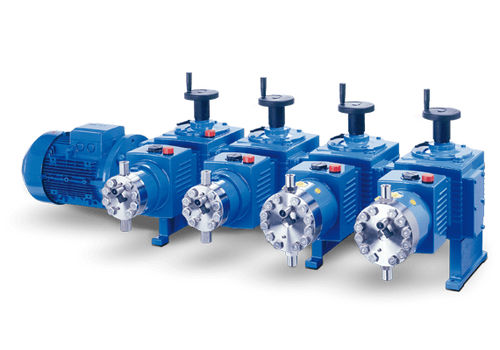

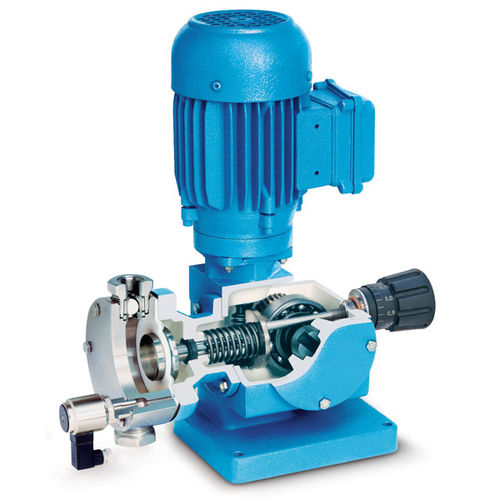

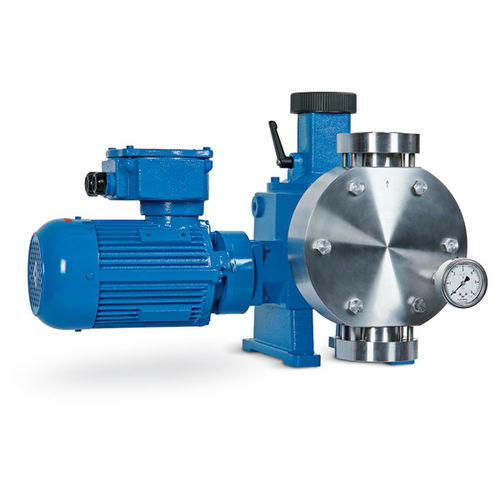

LEWA ecodos is a safe, reliable and efficient diaphragm metering pump with mechanical diaphragm actuation that provides many options. It is suitable for virtually all metering and pumping tasks in the low-pressure range. Its multiplexing function enables the use of additional applications such as low-pulsation pumping, recipe metering and mixing tasks.
LEWA ecodos®
The optimum solution in the low-pressure range.
Many metering tasks take place in the low-pressure range. In principle, high-pressure pumps such as the LEWA ecoflow can also be used here, though it is usually not efficient to do so.
Another important reason to use mechanically actuated metering pumps is that they protect the pumping fluid from contamination because no hydraulic oil is used in the pump. Many customers prefer mechanically actuated diaphragm pumps, especially for pharmaceutical applications and fluids that react with hydraulic oil.
For this reason, LEWA offers the ecodos series as an efficient, safe solution for pumping fluid in the low-pressure range.
Exact metering setting

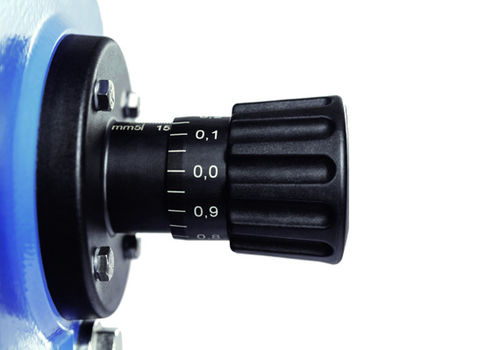

Even in low-pressure conditions, the ecodos diaphragm pump has a precise flow rate adjustment of ± 1%. You can achieve an exact, extensive adjustment range of up to 1:50 thanks to the option of adjusting the pump using the stroke length and/or rotational speed.

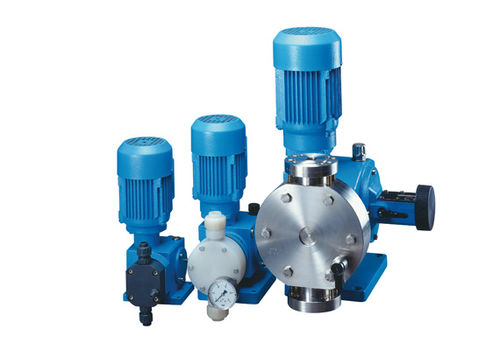

Various sizes and equipment
Adjust the LEWA ecodos precisely to meet your requirements: With 6 output ratings, the material variants 316/316L, PVC, PVDF and PTFE and adapted accessories, the diaphragm metering pump is suitable for virtually any pumping task in the low-pressure range.
توضیحات:
Fluid
for chemicals, oil
Operation
electric
Technology
diaphragm
Mobility
stationary, mobile
Domain
industrial, for the pharmaceutical industry
Applications
metering, high-pressure, conveying, adjustment, mixing
Material
PTFE, PVC, PVDF
Other characteristics
mechanically-operated, low-pressure, actuated
Flow
Max.: 1,460 l/h(385.6912 us gal/h)Min.: 16 l/h(4.22675 us gal/h)
Pressure
Max.: 20 bar(290.075 psi)Min.: 5 bar(72.519 psi)
Fluid temperature
Max.: 80 °C(176 °F)Min.: -10 °C(14 °F)
Length
Max.: 500 mm(20 in)Min.: 360 mm(14 in)
Width
Max.: 900 mm(35.43 in)Min.: 220 mm(8.66 in)
Height
Max.: 800 mm(31.5 in)Min.: 450 mm(17.72 in)
