نام محصول:
پمپ شیمیایی
نام انگلیسی:

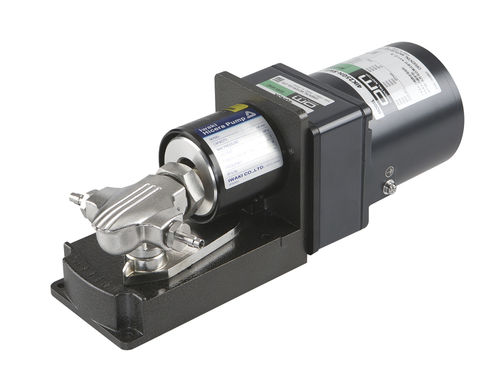

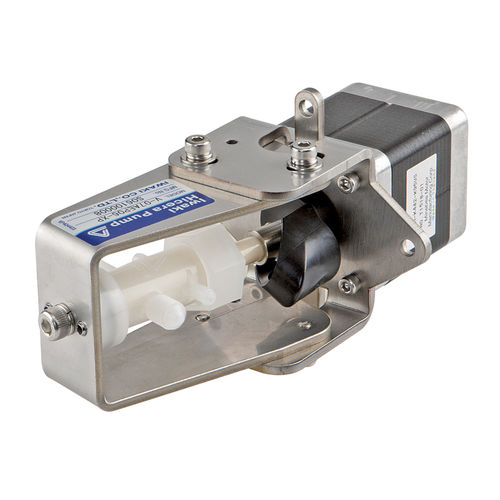

Chemical pump V
برند:
IWAKI Europe GmbH
مشخصات:
High precision micro dosing
All main parts (piston & cylinder) are made of finest ceramic produced with high precision and micro tolerances. Therefore a repeatability of ± 1 % is possible to achieve. By changing the angle of the pump head, the dosing capacity can be continously set between 0 and maximum.
Superior chemical resiatnce
To handle as many chemiclas as possible, all wet end parts are exclusively manufactured of high resistant materials (SiC, PTFE & SCS14).
Dosing into a vacuum & pumping out of high pressure areas
By using a valve less construction it is possible to dose a constant flow directly into a vacuum. Also a constant volume can be dosed, if the priming side is pressurized.
Handling viscous liquids and with solid substances
The unique valveless construction together with the resistance to tear and wear of SiC enable the handling of abrasive liquids as well as liquids including solid substances. A constant flow of high viscous liquids up to 20.000 mPas is possible.
Compact construction
These lightweight and compact pumps can be installed vertically and horizontally. By changing of the direction of motor rotation suction and discharge side can be changed.
Simple construction
Due to the simple design with only a few parts assembling, demounting and cleaning is easily to proceed.
توضیحات:
Fluid
for chemicals
Operation
electric
Priming
self-priming
Technology
piston
Mobility
stationary
Domain
chemical
Applications
discharge, handling, high-pressure, metering, cleaning
Material
PTFE, ceramic
Fluid specification
for abrasive fluids, for viscous fluids
Voltage
24 V
Protection level
chemical-resistant
Other characteristics
compact, suction, flow, micro
Flow
Max.: 5.4 l/h(1.42653 us gal/h)Min.: 0 l/h(0 us gal/h)
Pressure
2 bar(29.008 psi)
Fluid temperature
Max.: 60 °C(140 °F)Min.: 0 °C(32 °F)
Length
150 mm(6 in)
Width
79 mm(3.11 in)
Height
77 mm(3.03 in)
Weight
700 g(24.69 oz)
