نام محصول:
پمپ شیمیایی
نام انگلیسی:

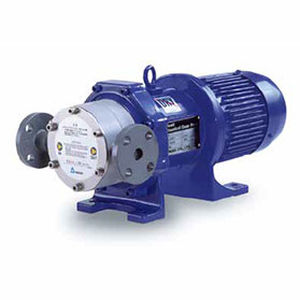

Chemical pump GM-V series
برند:
IWAKI Europe GmbH
مشخصات:
Iwaki’s Chemical Gear Pump GM-V is an internal gear pump made of highly corrosion-resistant materials. During pump operation, liquid does not come into contact with any of the pump’s metallic parts.
A magnet drive mechanism ensures that no liquid solution leaks from the pump. Thus, the GM-V safely handles most corrosive liquid chemicals, including acids and alkalis. Since the GM-V is pulsation-free and features precise discharge output, this pump is ideally suited to metering injection without pulsation.
توضیحات:
Fluid
for chemicals
Operation
magnetic-drive
Priming
normal priming
Technology
gear
Mobility
stationary
Domain
industrial, chemical
Applications
discharge, metering, injection
Other characteristics
corrosion-resistant, seal-less
Flow
Max.: 23 l/min(6.07596 us gal/min)Min.: 0 l/min(0 us gal/min)
Pressure
0.5 MPa
Power
0.37 kW, 0.4 kW, 0.75 kW(0.5 hp, 0.54 hp, 1.02 hp)
Length
424 mm, 529 mm(17 in, 21 in)
Width
160 mm, 178 mm, 249.5 mm, 279 mm(6.3 in, 7.01 in, 9.82 in, 10.98 in)
Height
188 mm, 258 mm(7.4 in, 10.16 in)
