نام محصول:
پمپ شیمیایی
نام انگلیسی:

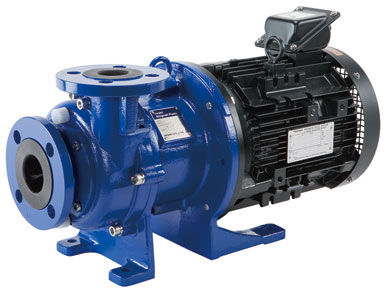

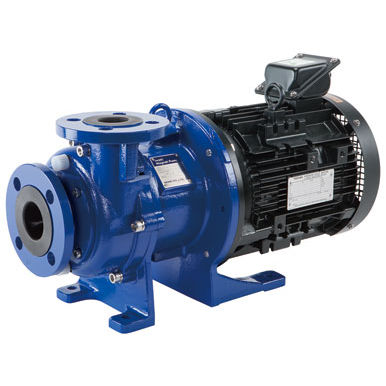

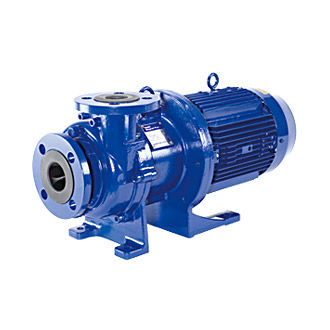

Chemical pump MXM
برند:
IWAKI
مشخصات:
Magnetic drive pumps with an excellent balance of features and performance
Features of MXM series
Better withstanding difficult operating conditions
The proven non-contact system and self-radiating bearing structure deliver substantial improvements in tolerance of dry running and poor suction conditions.
Self radiation structure
Through heat-dispersion holes provided in the fixed portions of the impeller and the magnet capsule, the liquid around the spindle and the bearing is forced to circulate so that heat generated by sliding can be reduced effectively. Thus, thermal deformation and melt are prevented.
Non contact system
Unlike conventional magnetic drive pumps, the MXM series are designed to prevent contact between the bearing and the rear thrust faces, even during dry running or air ingress into the suction. By preventing contact, the rear thrust ring minimizes heat generation to prevent melting of plastic parts.
توضیحات:
Fluid
for chemicals, air
Operation
magnetic-drive
Technology
impeller
Mobility
stationary
Domain
industrial
Applications
process, suction
Material
plastic
Other characteristics
suction, seal-less
Flow
Max.: 600 l/min(158.50323 us gal/min)Min.: 100 l/min(26.41721 us gal/min)
Head
Max.: 42 m(137’09” )Min.: 5.5 m(18’00” )
Power
Max.: 3.7 kW(5.03 hp)Min.: 0.4 kW(0.54 hp)
Fluid temperature
Max.: 105 °C(221 °F)Min.: 10 °C(50 °F)
