نام محصول:
پمپ شیمیایی
نام انگلیسی:

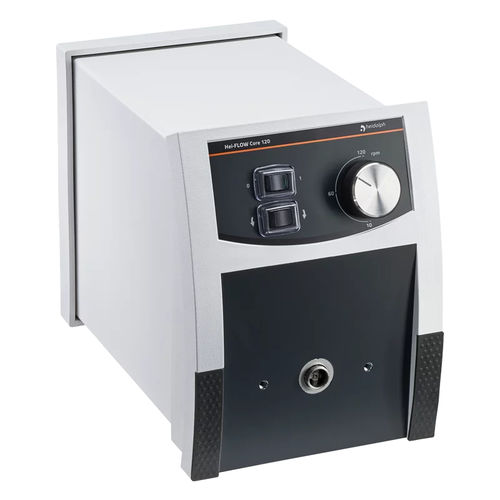

Chemical pump Hei-FLOW Core 120
برند:
Heidolph Instruments GmbH & Co. KG
مشخصات:
This peristaltic pump is ideal for the simple conveying of all media. The pump drive of this model makes it possible to switch between a single channel and multi-channel pump head. By simply flipping the switch, it can also be conveyed in an anti-clockwise direction.
Depending on the adapted pump head, a flow rate of 0.83 – 861 ml/min for the single-channel and 0.005 – 364 ml/min for the multi-channel pump head is guaranteed. The Core 120 conveys with a control accuracy of ± 2% at a speed range of 10 – 120 rpm.
Multi-Channel Operation
• Increase your throughput by running up to 12 individual cassettes on one single pump drive and pump head system
• Separate metering into multiple vessels with different feed rates in a single operation by using different tubing dimensions to adjust flow rate
• Save time: tubing change is done in just seconds
• In addition to standard pump heads which feature a 4-roller system you can choose 8-roller pump heads for low pulsation
• Change your cassettes easily, even during operation – there are no restrictions
• Cassette adjustments and changes are simple, just click in place
• No additional purchase of a pump drive needed: upgrade your single-channel pump drive with just one adaptor for multi-channel use and pick the head/cassette configuration that matches your application needs
توضیحات:
Fluid
for chemicals
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
stationary
Domain
laboratory
Applications
filling, conveying, high-precision
Protection level
chemical-resistant, IP54
Other characteristics
small, corrosion-proof, for fluids, variable-speed, multi-channel
Flow
Min.: 0.00001 l/min(0 us gal/min)Max.: 0.861 l/min(0.22745 us gal/min)
