نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump 1600
برند:
Gorman-Rupp Industries
مشخصات:

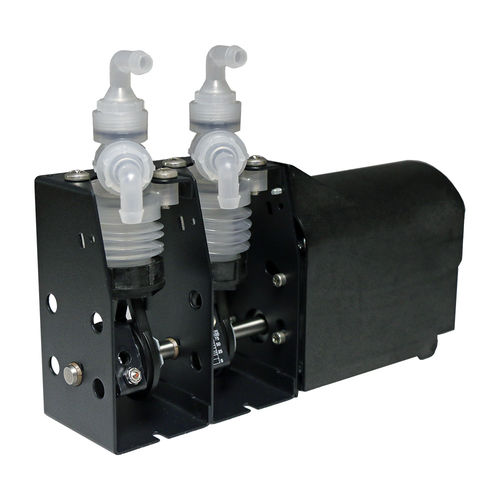

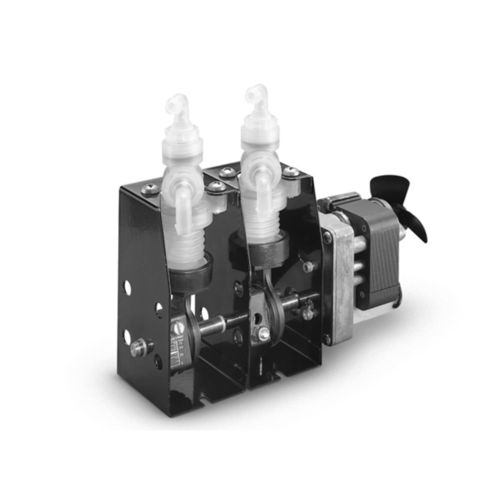

Gorman-Rupp Industries’ line of Compact Bellows Metering Pumps were specifically designed for metering applications requiring low discharge pressures. Compact Bellows utilize GRI’s proven proprietary blend of polypropylene materials to provide an accurate and economical, long-lasting metering pump. A wide selection of valve and O-Ring elastomers produce chemical resistance pumps capable of handling both corrosive and non-corrosive fluids.
The Compact Bellows Metering Pumps operate on a positive displacement principle. The rotation of the motor shaft is transmitted into an up and down linear motion through an adjustable concentric crank mechanism. This motion provides a continuous compressing and relaxing force on the bellows module, forcing fluid between two check valves located in the module’s valve body. Up to four separate bellows modules can be operated by single motor for proportioning up to four separate fluid mediums. The flow rate of each module is independently adjustable. Multiple bellows modules operate out-of-phase with each other for most efficient power usage.
Any combination of ½”, ¾”, 1″, 1-1/2″ and 2″ bellows may be used in a pump. However, the total output must be limited to a maximum flow rate of 3000 ml/min.
For a complete description of our Compact Bellows Metering Pumps, including performance, options, replacement kits, and dimensional drawings, please click the blue “Pump Overview & Data Sheet” button.
توضیحات:
Fluid
for chemicals, slurry
Operation
electric
Priming
self-priming
Technology
bellows
Mobility
stationary, mobile
Domain
chemical
Applications
discharge, metering, handling
Material
polypropylene
Voltage
115 V, 220 V
Other characteristics
compact, adjustable, line, dry, corrosion-resistant, analytical
Flow
Max.: 3 l/min(0.79252 us gal/min)Min.: 0.0038 l/min(0.001 us gal/min)
Pressure
5 psi
Fluid temperature
49 °C, 60 °C(120.2 °F, 140 °F)
