نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump
برند:
FLUX-GERÄTE GMBH
مشخصات:

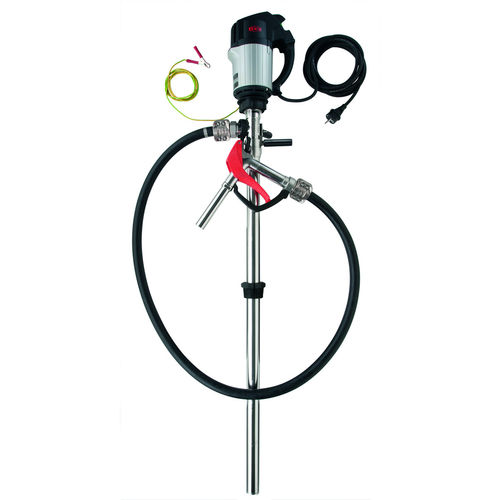

Pre-assembled pump kit to pump different media out of 200 l drums (immersion length 1000 mm) or IBCs (immersion length 1200 mm). Comprising drum pump F 430, outer tube in stainless steel, hose, hand nozzle and compression gland. Driven either by commutator motor F 460 or compressed-air motor F 416.
echnical data:
Viscosity: min. 1 mPas – max. 800 mPas
Outer tube diameter: max. 41 mm
Immersion length: 1000, 1200
Materials outer tube: Stainless steel
Media / Fluids: Highly flammable media, Petroleum products, Solvents, Fuels
Seal: with mechanical seal
Container: 200 l drums, 1000 l IBC
Product attributes
Pump with mechanical seal
Pump can be taken apart without tools into two parts
Benefits
Easy disassembly
Universally and flexibly applicable
Easy to clean as no medium can get into the inner tube
No carrying-over of the medium – one pump can be used for different media
Also for adhesive media
Also for liquids that crystallize or harden
توضیحات:
Fluid
for chemicals, oil, fuel, air
Operation
electric
Priming
semi-submersible
Technology
impeller
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, for the pharmaceutical industry, agriculture, for the cosmetics industry
Applications
drum, IBC, for containers
Material
stainless steel
Fluid specification
flammable products
Protection level
explosion-proof, ATEX, immersion
Other characteristics
mechanical, with mechanical seals, portable, seal
Flow
50 l/min(13.2086 us gal/min)
Head
13 m(42’07” )
