نام محصول:
پمپ شیمیایی
نام انگلیسی:
Chemical pump JP-180
برند:
Dr. Jessberger GmbH
مشخصات:

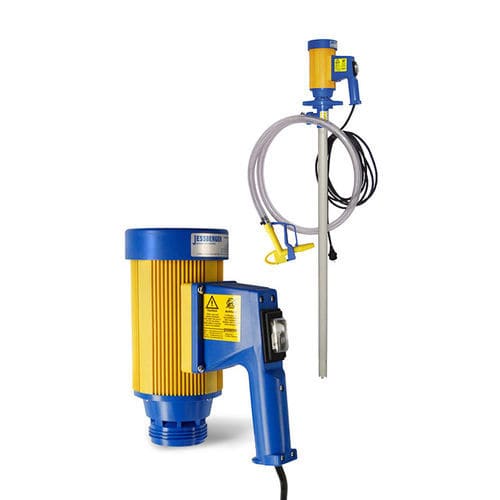

The drive JP-180 is a compactly built, not explosion-proof, internally ventilated universal motor that is our top seller for aggressive media in the chemical and the galvanic industry
beside JP-280.
This handy, very robust and powerful motor can be used to drive the suction tubes of drum pumps. In this combination it is suitable for many thin liquid and slightly viscous, neutral, aggressive and non-flammable liquids (max. 600 mPas). Its sophisticated, technically clear structure ensures an efficient and safe use when transferring a wide range of media.
The drum pump motor is characterized not only by its light weight (3,6 kg) but also by its elegant design and ease of use. The non-stationary and stationary usable drive is particularly suitable for intermittent operation. As internally ventilated motor it has an optimal air cooling, low noise and ensures high operational safety and long lifetime.
The motor housing made of polypropylene ensures a high chemical resistance when aggressive vapours of acids and alkalies are present.
The standard in the on/off switch integrated low voltage release is intended to prevent an uncontrolled start of the drum pump motor after a power failure or voltage drop and thus guarantees maximum safety.
The flow rate of the media to be pumped can be regulated by an optionally available speed control that is integrated in the motor handle. Therefore the flow rate can be adjusted to the needs of the user.
The maximum density of the media is for the JP-180 universal motor 1.5, the maximum viscosity 600 mPas.
توضیحات:
Fluid
for chemicals
Operation
with electric motor
Priming
submersible
Technology
impeller
Mobility
stationary
Domain
industrial, chemical
Applications
cooling, for control, drum
Material
polypropylene
Fluid specification
for aggressive media
Voltage
230 V, 115 V
Protection level
explosion-proof, robust
Other characteristics
suction, standard, flow, integrated
Flow
74 l/min, 93 l/min(19.54873 us gal/min, 24.568 us gal/min)
Head
11 m, 26 m(36’01” , 85’03” )
Power
640 W(0.87 hp)
Weight
3.6 kg(7.94 lb)
