نام محصول:
پمپ شیمیایی 3VMP18

نام انگلیسی:
Chemical pump 3VMP18

برند:
ViscoTec Pumpen- u. Dosiertechnik GmbH

مشخصات:
Fluid
for chemicals, for solvents, for adhesives, for ink, for resin, alcohol, oil

Operation
electric

Priming
self-priming

Technology
worm gear

Domain
for the printing industry, for the chemical industry, for water treatment, laboratory, for the cosmetics industry, for the paper industry, for the textile industry, for the steel industry, for automotive applications, for the laminates industry, solar
Applications

irrigation, circulation, lubrication, mixing, handling, mixing, process, metering, for lubrication units, recirculation, for industrial applications, booster, high-volume, drum, drain, feed

Material
stainless steel

Fluid specification
dye, for AdBlue, for abrasive fluids, for low-viscosity fluids, for high-viscosity fluids, for viscous fluids, for paper stock

Protection level
chemical-resistant, abrasion-resistant

Other characteristics
high-flow, compact, horizontal mount, mobile, multi-stage, skid-mounted, three-stage, heavy-duty, corrosion-proof, linear, for packaging machines, medium-flow, variable-flow, electronic, custom, with speed controller, radial, high-efficiency, variable-speed, rugged, remote control, high-performance, adjustable, rugged, belt-drive, with pressure alarm, vertical, high-reliability, in-line, embedded, continuous-flow, adjustable-flow, high-capacity, electronic regulation, with seal, modular, OEM, automatic, with frequency converter, flange, computer-controlled, with electronic control, hermetically-sealed, constant-pressure, low-pressure

Pressure
10 bar, 30 bar
(145.038 psi, 435.113 psi)

توضیحات:

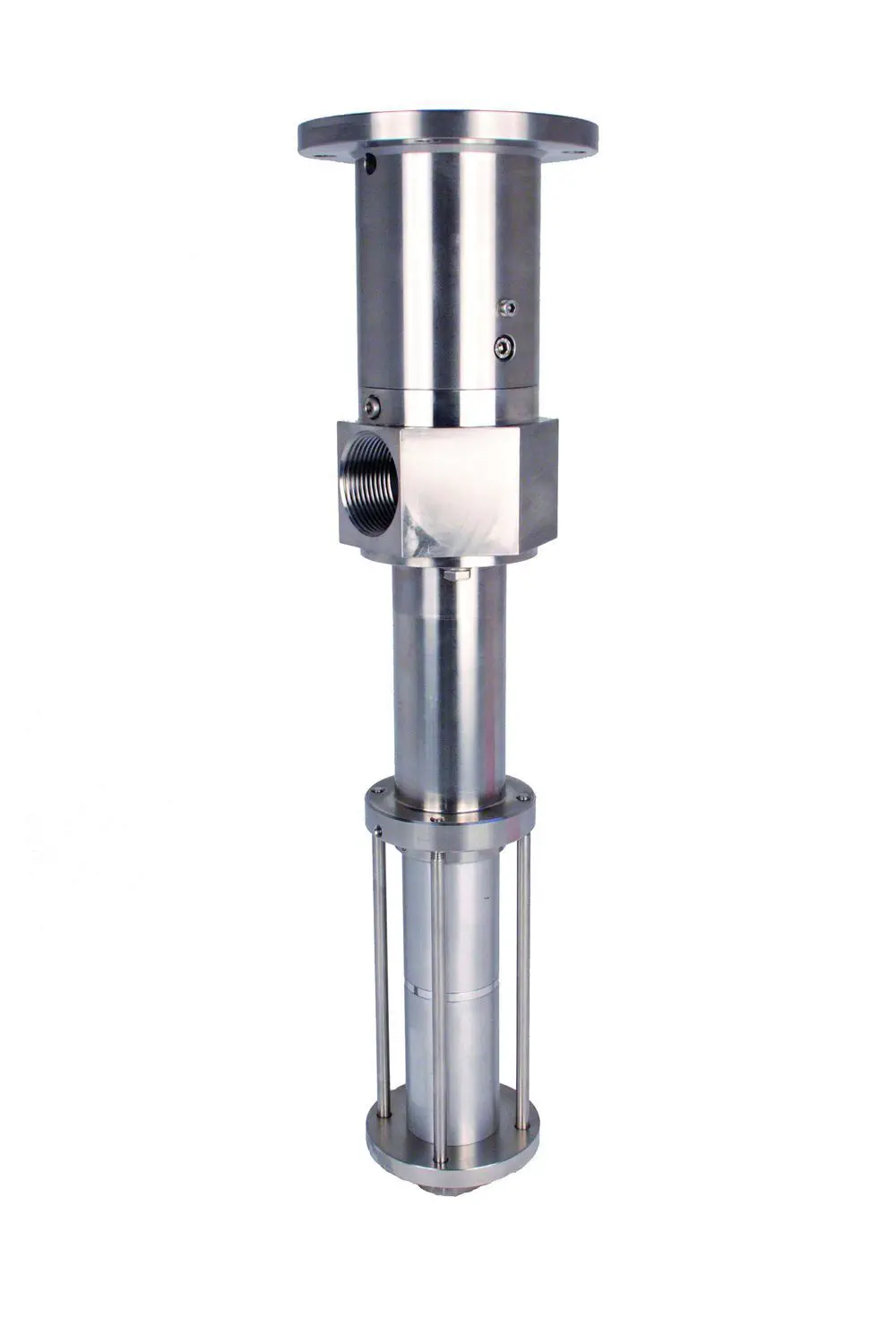

ViscoTec dispenser 3VMP18, as a volumetric dispensing pump for larger volumes, ensures smooth and reliable product supplying of abrasive, high-filled or shear sensitive material – with a repeatability of +/- 1 %!

Absolutely precise, consistent and reliable dosing of a wide variety of materials and pumping of larger volumes. Thanks to the special rotor-stator geometry, a valve to prevent material from automatically flowing out is not required. Alternately opening chambers allow the gentle transfer and pulsation-free dispensing of product.

Your advantages:
– no dripping or stringing of product due to reverse-flow
– linear relation between drive speed and dosing volume
– constant dosing volume, also with density, viscosity and temperature fluctuations
– reliable dosing without heating of material
– driven by servo or AC motor
– easy programming of quantity and speed
– low maintenance, quick dismantling
– self-priming, no (or low) product input pressure required (depends on material)

Application:
– dot application, bead application, variable quantities possible
– dosing of all low and high viscosity adhesives and sealants (not anaerobic products)
– particularly suitable for abrasive, high-filled or shear sensitive material
– also used in barrel emptying systems

Technical data:
– dosing volume: ~ 7.5 ml/rev.
– min. dosing quantity: 0.45 ml *
– operating temperature: +10° to +100°C *
– material temperature: -20° to +100°C *
– max. speed: 125 rpm *
– max. permissible torque: 8 Nm
– max. dosing pressure: 30 bar *
– max. supply (input) pressure: 10 bar *
– weight: approx. 8,000 g
* depends on material
