نام محصول:
پمپ شیمیایی
نام انگلیسی:

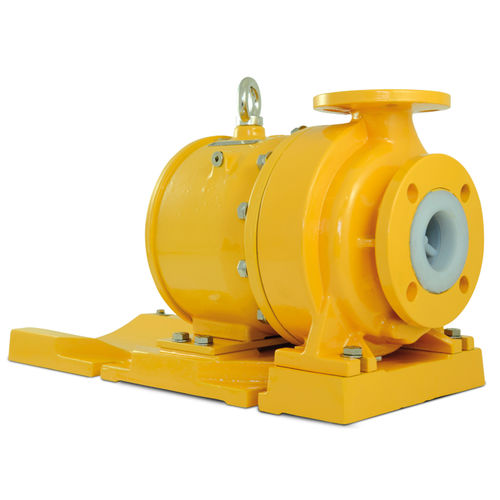

Chemical pump UTN-L / UTN-BL series
برند:
CDR Pompe
مشخصات:
Plastic and Fluoroplastic Lined Magnetic drive Horizontal Process Centrifugal pumps
Lining: PP (Polypropylene), PVDF (Polyvinylidene fluoride), PFA (Perfluoroalkoxy)
End-suction – Long Coupled (UTN-L) and Close Coupled (UTN-BL) execution
Versatility: suitable for handling corrosive, aggressive and hazardous liquids (low viscosity, clean or slightly contaminated) in the chemical, petrochemical and Pharma industries, where the need of high safety standards is the first requirement
Reliability: the pump is equipped with reliable oil lubricated bearing bracket, especially developed to be suitable even under heavy duty service.
Design: UTN range share the same hydraulic design with the UCL series (mechanical seal pumps) which have been developed focusing on the needs of the chemical industry.
TECHNICAL SPECIFICATIONS
SHAFT SEAL TYPE: – Sealless Magnetic Drive
DESIGN: – EN 22858; ISO 2858
STANDARD: – ISO 5199
CASING MATERIAL: – PFA Lined – PVDF lined – PP Lined
CASING PARTITION: – Radially split
CASING: – Volute Casing
توضیحات:
Fluid
for wastewater, for industrial water, for chemicals, oil
Operation
magnetic-drive
Technology
centrifugal
Mobility
stationary
Domain
for the chemical industry, industrial, for the semiconductor industry, for water treatment, for the petrochemical industry, for the mining industry, for the pharmaceutical industry, for the metallurgical industry, for the paper industry, for the cosmetics industry, for the textile industry, for methanizers
Applications
transfer, handling, for harsh environments, process, for power stations, circulation, service, feed, filling, washing, rinsing, loading, chemical process, for reactor discharge, for hazardous locations, purge, for industrial applications, recirculation
Material
PP, plastic, PFA, PVDF
Fluid specification
for aggressive media, for low-viscosity fluids, for corrosive fluids, for hazardous fluids, for flammable fluids, dye, for toxic fluids, flavouring
Voltage
400 V, 380 V, 230 V
Protection level
chemical-resistant, explosion-proof, hazardous-duty, corrosion-resistant, ATEX
Other characteristics
single-stage, compact, waterproof, heavy-duty, suction, standard, with closed impeller, continuous-flow, linear, mechanical, horizontal mount, with flange, rugged, skid-mounted, coated, with free shaft, ball bearing, low-noise level, base-mounted, seal, high-reliability, fixed-speed, with frequency converter, electromechanical, close-coupled, single-acting, corrosion-proof, for fluids, rugged, lubricated, radial
Flow
Max.: 250 m³/h(8,828.66668 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
Max.: 16 bar(232.06 psi)Min.: 0 bar(0 psi)
Head
Max.: 65 m(213’03” )Min.: 0 m(0’00” )
Power
Max.: 37 kW(50.31 hp)Min.: 0.75 kW(1.02 hp)
Fluid temperature
Max.: 150 °C(302 °F)Min.: -50 °C(-58 °F)
Weight
Max.: 85 kg(187.39 lb)Min.: 40 kg(88.18 lb)
