نام محصول:
پمپ شیمیایی
نام انگلیسی:

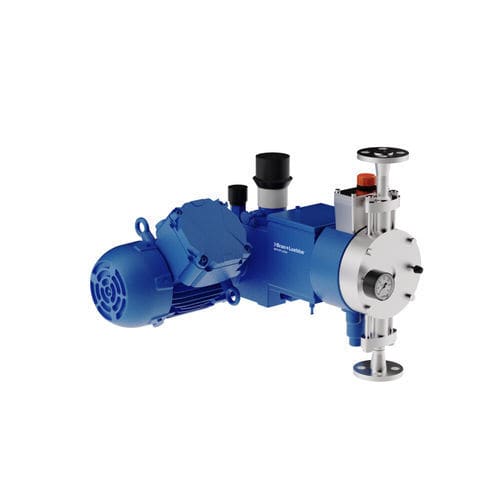

Chemical pump NOVADOS Express
برند:
Bran+Luebbe
مشخصات:
Competitively priced and ready for quick delivery, our NOVADOS EXPRESS H1 is precision engineered for getting the job done. These hydraulically actuated double diaphragm dosing pumps cover flow rates of approx. 2 l/h to 300 l/h, with pressures up to 20 bar. Suitable for most liquid dosing applications, it can also handle consistencies ranging from pure liquids free from particles to slurries with a solids content of up to 5wt%.
Features
NOVADOS Express – The precision engineered standard option for outstanding quality with faster delivery and competitive pricing. Our Metering Pumps comprise leak-free diaphragm pumps as well as plunger pumps.
Materials of construction of liquid-wetted parts
Housings of stainless steel 316 low carbon type
Diaphragms of PTFE
Plungers of stainless steel or ceramic
Pump gear design
Worm gear with different reduction ratios
Splash lubrication
Stroke length adjustment via eccentric (Z-shape) crankshaft
Flow rate control
Manual
Drive
Electric motor with fixed speed
Installation and Operating Conditions*
*These are limit values, please state actual conditions with inquiry.
Benefits
Hermetically sealed pump design
Optimal capacity adaptation to widely varying production processes
Variable stroke length allows precise flow rate adjustment
توضیحات:
Fluid
for chemicals
Operation
electric
Technology
plunger
Mobility
stationary
Domain
industrial
Applications
metering, dosing, adjustment
Material
stainless steel
Other characteristics
standard, double, flow, actuated
Flow
Max.: 300 l/h(79.25162 us gal/h)Min.: 2 l/h(0.52834 us gal/h)
Fluid temperature
Max.: 93 °C(199.4 °F)Min.: -10 °C(14 °F)
Length
470 mm(19 in)
Width
390 mm(15.35 in)
Height
320 mm(12.6 in)
Weight
Max.: 106 kg(233.69 lb)Min.: 19 kg(41.89 lb)
