نام محصول:
پمپ شیمیایی
نام انگلیسی:

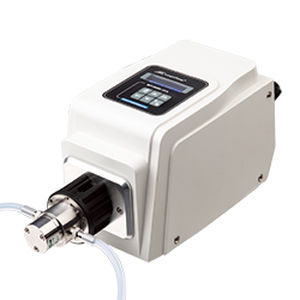

Chemical pump WT3000-1FA
برند:
Baoding Longer Precision Pump
مشخصات:
micro gear pump are specially designed for batch dispensing and filling applications. The pump has LCD, which could display the parameters and running state. The flow rate control mode is for continuous fluid transferring, and the dispensing control mode is for dispensing the fluid at desired dispensing volume. And the flow rate calibration and dispensing calibration ensure the high precision and accuracy. Different pump head materials ensure the chemical compatibility. The outlet pressure changes along with the change of flow rate, and the max pressure could be 0.8Mpa. The pump could be controlled manually through the control panel, and also could be controlled through the external control signal.
Applications：
Suitable for lab and industry application
Main Functions and Features
– Acceptable pump heads: MG204, MG209, MG213
– Flow rate function: Deliver the liquid according to the set flow rates.
– Dispensing function: Dispensing volume, cipy number and pause time can be set.
– Calibration function: The flow rates and the dispesning volume can be calibrated to increase the accuracy.
– Operating mode: Membrane keypad
– Prime function for fast filling and emptying
– External control input: Control the flow rates and start/stop of the pump
– External control output: Output start/stop and speed signal.
– Footswitch: Control the start/stop of the pump
– Communication function: Realize computer control through RS485 interface.
– Memory function: Store the running parameters automatically.
– Cooling mode: Heat-emitting fan
– Running directions: Clockwise
توضیحات:
Fluid
for chemicals
Technology
gear
Mobility
stationary, mobile
Domain
industrial
Applications
metering, cooling, control
Other characteristics
micro
Flow
Max.: 2.5714 l/min(0.67929 us gal/min)Min.: 0.0857 l/min(0.02264 us gal/min)
Pressure
0.8 MPa
Power
50 W(0.07 hp)
Fluid temperature
Max.: 120 °C(248 °F)Min.: -45 °C(-49 °F)
Length
232 mm(9 in)
Width
142 mm(5.59 in)
Height
149 mm(5.87 in)
Weight
3.25 kg, 3.26 kg, 3.28 kg(7.17 lb, 7.19 lb, 7.23 lb)
