نام محصول:
پمپ شیمیایی
نام انگلیسی:

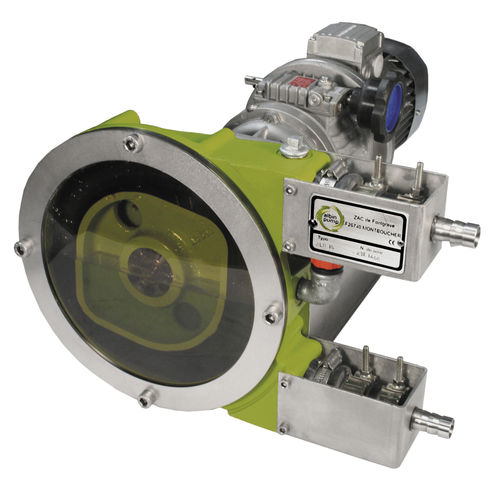

Chemical pump ALH20-3
برند:
Albin Pump
مشخصات:
HIGH PRESSURE (ALH) PERISTALTIC PUMP – ALBIN PUMP
– Volumetric flow up to 670 l/h (177 gph)
– No mechanical seal or stuffing box
– Robust, entirely of ductile iron
– Suitable for aggressive or viscous fluids
– Dosing of very corrosive chemicals
– Fully self-priming up to 9.8 m
– Damage-free continuous dry running
– Outlet pressures up to 10 bar
– Very easy maintenance
– Stainless steel screws
– Heavy-duty bearings, greased for life
– Two-year warranty
– Plug and Play
– Perfect volumetric flow
– Reversible flow
– Close coupled with gearbox protection
– Low sound level: :< 70 dB at 1 meter
Typical applications :
WATER TREATMENT : lime cream, ferrous chloride, activated carbon, reagent feed, coagulant, flocculate dispersion, alum, sludge & foams
MINERAL PROCESSING : sludge with high viscosity, clay, particle size, lead sulfate, pyrite, SABX, cyanide, various acids
CERAMIC : ceramic glaze, mould filling, filter press feeding
BUILDING : fibrous mortar, plaster, light concrete, cement flooring
CHEMICAL INDUSTRY : various acids, PVDF latex, alcohol, soap, non aromatic solvents
FOOD INDUSTRY : tomato sauce, mash potatoes, gelatin, beer yeast, fish paste, olive oil, wine.
PAINT AND PIGMENTS INDUSTRY : water based paint, acrylics, pigments, ink, wall coating
PAPER MILLS : latex, kaolin, paper waste sludge, various chemical dosing
AGRICULTURE AND BIOGAZ : manure, fertilizer sugar mills, treacle, liquid, sugar and various chemicals
توضیحات:
Fluid
for chemicals, slurry, for food products, oil, grout, for cement, for self-leveling floor screed, plaster
Operation
electric
Priming
self-priming
Technology
peristaltic
Mobility
mobile, stationary
Domain
industrial, for the chemical industry
Applications
for industrial applications, transfer, for printing machines, metering, discharge, process, circulation, chemical process, volumetric dispensing, for reverse osmosis, cleaning, trial, sanitation, treatment, for harsh environments, for hazardous locations, suction, injection
Material
stainless steel, cast iron, aluminum, plastic, PTFE, steel, polypropylene, metal
Fluid specification
for aggressive media, for solids-laden fluids, dye, for abrasive fluids, for viscous fluids, for high-viscosity fluids, for low-viscosity fluids, for corrosive fluids, for heavy fluids, cutting fluid, for mineral oil, coagulant, flavouring, for fluids with lubricating properties, for brine
Protection level
chemical-resistant, abrasion-resistant, explosion-proof, explosion-proof, hazardous-duty, ATEX, corrosion-resistant, robust
Other characteristics
transportable, compact, bi-directional, tank-mounted, with stand, horizontal mount, lubricated, adjustable-flow, in-line, stand-alone, multiphase, floor-mounted, rotary, variable-flow, skid-mounted, integrated-drive, corrosion-proof, seal-less, fixed-flow, for packaging machines, for fluids, fixed-speed, easy tube loading, variable-speed, heavy-duty, fixed-displacement, for protective coverings, continuous-flow, high-reliability, medium-flow, low-flow
Flow
Min.: 1 l/h(0.26417 us gal/h)Max.: 670 l/h(176.99528 us gal/h)
Pressure
Min.: 1 bar(14.504 psi)Max.: 10 bar(145.038 psi)
Weight
Min.: 36 kg(79.37 lb)Max.: 40 kg(88.18 lb)
