نام محصول:
پمپ شیمیایی سری LPM

نام انگلیسی:
Chemical pump LPM series

برند:
THE LEE COMPANY

مشخصات:
Fluid
for chemicals

Operation
solenoid-driven

Priming
self-priming

Technology
diaphragm

Mobility
stationary

Domain
industrial, for the petrochemical industry, laboratory, for medical applications, for the automotive industry

Applications
volumetric dispensing, high-precision

Material
EPDM

Voltage
24 V, 12 V

Other characteristics
compact

Power
1.5 kW, 2 kW
(2.04 hp, 2.72 hp)

Length
57 mm
(2 in)

Width
15 mm
(0.59 in)

Height
14 mm
(0.55 in)

توضیحات:

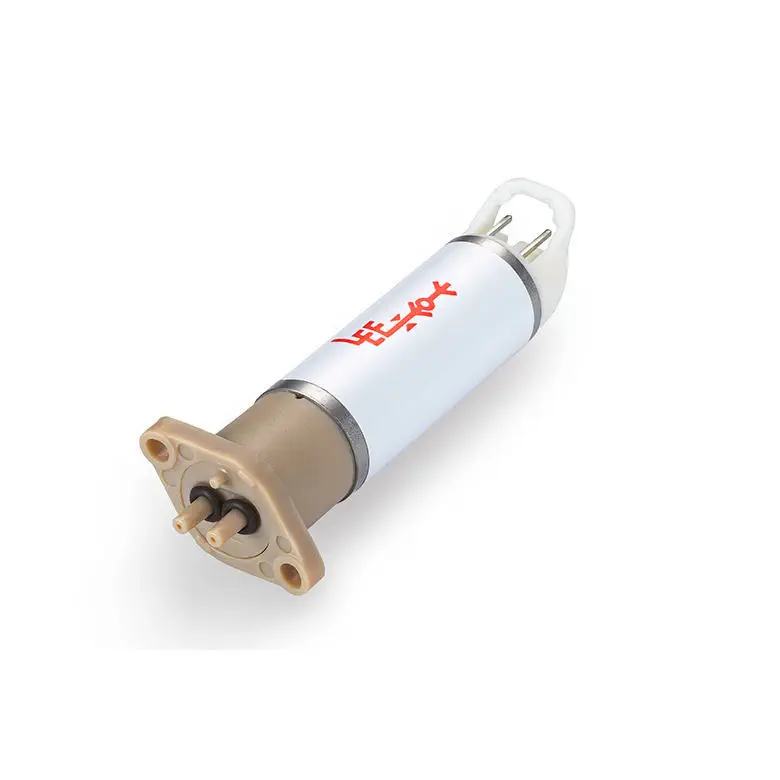

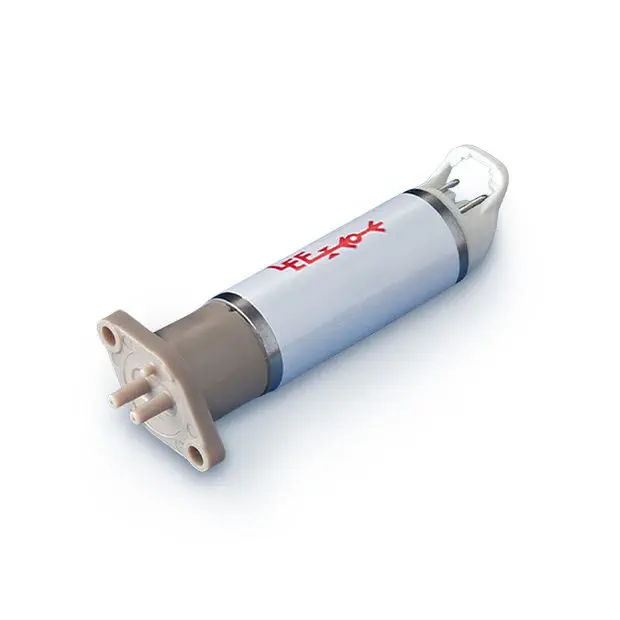

This miniature (13.5 mm), solenoid-driven fixed volume dispense pump is available in 10 µL and 25 µL standard models, with other dispense volumes available upon request. Featuring a compact, chemically inert, self-priming design, this pump aspirates an accurate volume of fluid when the solenoid is energized and dispenses the full volume of fluid when de-energized. Integrated check valves, together with a unique housing design and diaphragm seal, prevent siphoning when the dispense point is positioned above the fluid reservoir. Each pump is customizable and 100% tested to ensure performance.

Features:

Maintenance Free Design
Dispense Volume Range: 10 – 25 µL
Anti-Siphoning Design
Low Power Consumption
