نام محصول:
پمپ شیمیایی سری LPD

نام انگلیسی:
Chemical pump LPD series

برند:
THE LEE COMPANY

مشخصات:
Fluid
for chemicals

Operation
stepper motor-driven

Priming
self-priming

Technology
diaphragm

Mobility
stationary

Domain
for the petrochemical industry, laboratory, medical, for the automotive industry

Applications
volumetric dispensing, high-precision

Other characteristics
compact, standard, high-performance, custom

Pressure
60 psi, 95 psi

Input diameter
0.3 in

Width
42.9 mm
(1.69 in)

Height
43 mm
(1.69 in)

توضیحات:

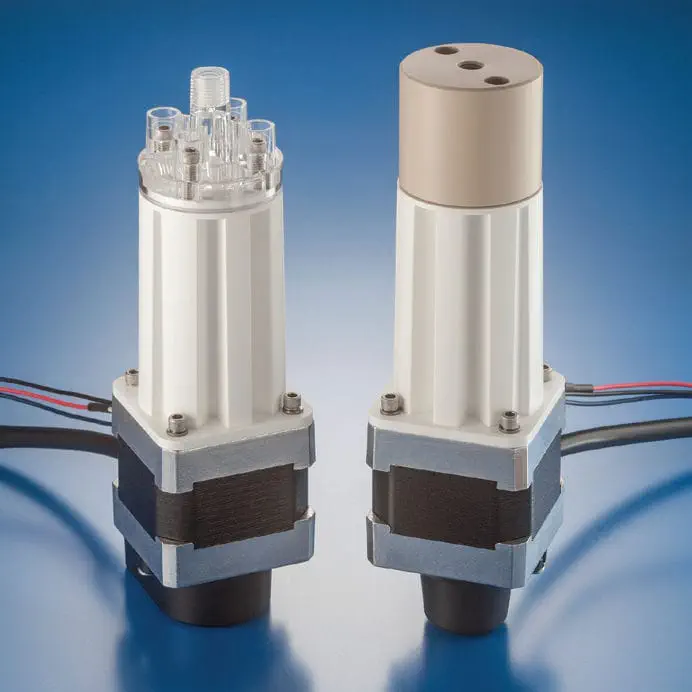

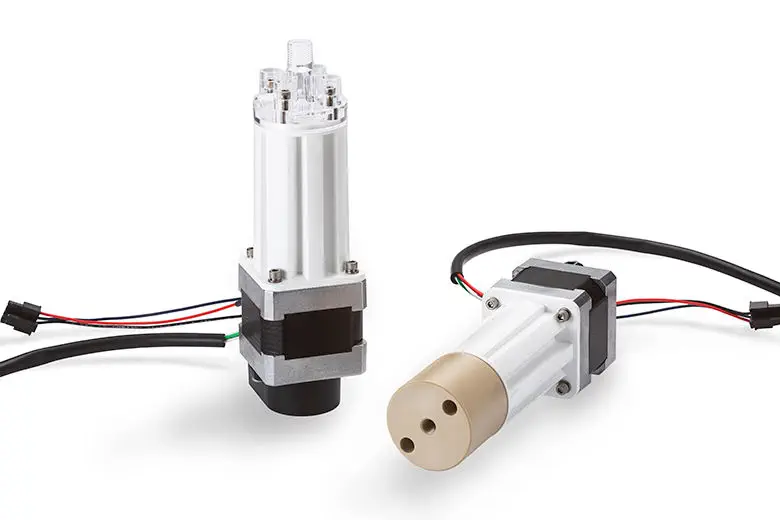

LPD Series variable volume dispense pumps are a new generation of stepper motor driven, positive displacement pumps designed to provide unparalleled reliability a nd performance at an economical price. The LPD Series are available in standard dispense volumes of 50, 250, 1000, and 3000 µL, with ¼-28 ports in either a PEEK or PMMA (acrylic) port head. Featuring a flexible and maintenance free design, LPD Series pumps can be positioned in the ideal fluidic location within a system, regardless of accessibility. All designs are equipped with a home sensor to establish the end of stroke, and high-performance models include an optical motor encoder for applications requiring feedback on piston movement. Manifold mount and dual-seal configurations can also be made available upon request.

Features:

Maintenance Free Design
Porting: ¼-28 Connection
Wide Range of Dispense Volumes Available
High Dispense Accuracy and Repeatability
Home Sensor and Encoder Options Available
10 Million Cycle Life
