نام محصول:
پمپ سوخت
نام انگلیسی:
Fuel pump DEVIL 40
برند:
Emiliana Serbatoi
مشخصات:
Displacement, self-priming, rotary electric vane pumps for the transfer of diesel fuel equipped with by-pass valve.
Powerful, dependable and economical, they are available with 12 and 24-volt direct current motors.
Thanks to their compact size, ease of installation, dependability and safety, these pumps are used as the primary system on earth-moving machinery and on mobile fuel pumps on vehicles or in construction yards.
Technical Specifications
• – Cast iron pump body finished with anti-corrosion paint.
• – Vane pump with sintered steel rotor and acetal resin vanes.
• – By-pass valve incorporated in the pump body.
• – Direct current brush motor with permanent magnet stator.
• – Motor protection grade IP55.
• – Used in intermittent service with 30-minute work cycles.
• – Pump attachment support bracket.

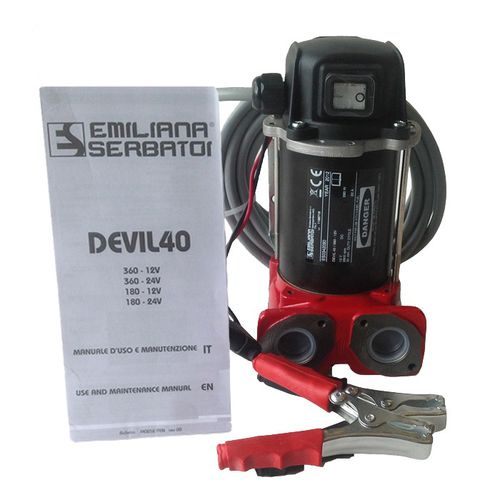

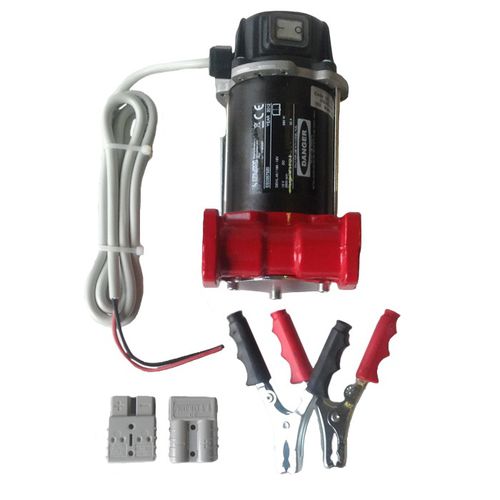

Model DEVIL 40 whit parallel inlet / outlet 360°: (Images 1-2-3-4)
Available in two versions (12 and 24-Volt) with 3/4″ threaded connectors on the pump body.
Flow rate: 40 l/min (12V version) and 43 l/min ( 24V version).
Model DEVIL 40 whit opposite inlet / outlet 180°: (Images 5-6-7)
Available in two versions (12 and 24-Volt) with 3/4″ threaded connectors on the pump body.
Flow rate: 40 l/min (12V version) and 43 l/min ( 24V version).
توضیحات:
Fluid
fuel
Operation
DC
Priming
self-priming
Technology
rotary vane
Mobility
mobile
Domain
for oil industry applications
Applications
transfer
Material
cast iron
Voltage
24 V, 12 V
Protection level
anti-corrosion, IP55
Other characteristics
compact, mobile
Flow
40 l/min, 43 l/min(10.56688 us gal/min, 11.3594 us gal/min)
