نام محصول:
پمپ سوخت
نام انگلیسی:
Fuel pump
برند:
Dr. Jessberger GmbH
مشخصات:
PUMP SYTEM WITH DIAPHRAGM PUMP
If necessary fuel or other hazardous substances must be pumped out or pumped around for safety and environmental reasons.

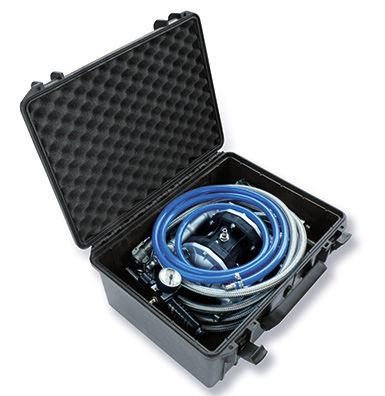

Jessberger has developed a flexible emergency set for this purpose. A suitable air operated diaphragm pump that is housed in a practical, dust and water-proof carrying case together with all the necessary accessories.
The pump is operated safely and reliably with the help of a 200 bar or 300 bar breathing air cylinder, a compressor or the truck compressed air connection. With an output of up to 55 l/min, this pump is easily sufficient for most applications.
FEATURES
• Air operated double diaphragm pump made of cast aluminum or made of polypropylene.
• Very robust and light.
• Flexible area of application.
• Resistant to alkalis and acids (depending on the version, conditionally resistant).
• 500-700 l pumping capacity with one breathing air bottle.
• Stowed away ready for use in a splash-proof, dust-proof and impact-resistant plastic case.
Scope of delivery:
1 piece air operated double diaphragm pump
1 pressure hose 1/2 inch, stainless steel, 2 m long, Kamlock quick release.
1 suction hose 1/2 inch, stainless steel, 2 m long, Kamlock quick release.
1 piece divisible suction lance, 1/2″, stainless steel
1 piece ground wire with clip
2 meter compressed air hose, with quick coupling
1 filter regulator with ball valve for optimal adjustment of the flow rate
1 Jessberger carrying case
Options: Pressure reducer 300 bar for common fire brigade compressed air cylinders
Suction strainer for the suction lance
Connection adapter for truck compressed air connection
5m extension hose, ½”, stainless steel, with camlock connectors
توضیحات:
Fluid
fuel, air
Priming
submersible
Technology
diaphragm
Mobility
stationary
Domain
industrial
Applications
suction, adjustment
Material
stainless steel, plastic, polypropylene, cast aluminum
Protection level
robust
Other characteristics
suction, double, flow, filter, ball valve, dust-proof
Flow
55 l/min(14.52946 us gal/min)
Pressure
200 bar, 300 bar(2,900.755 psi, 4,351.132 psi)
