نام محصول:
پمپ سه مرحله ای
نام انگلیسی:

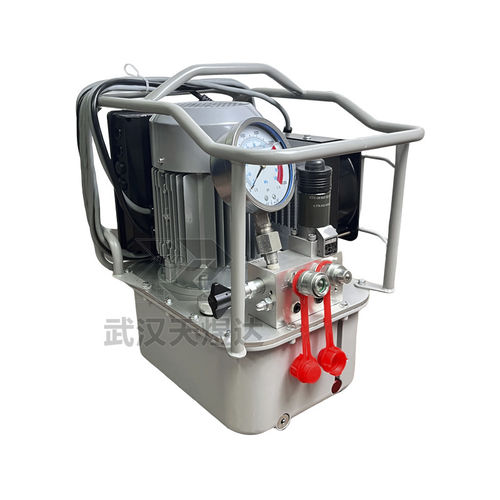

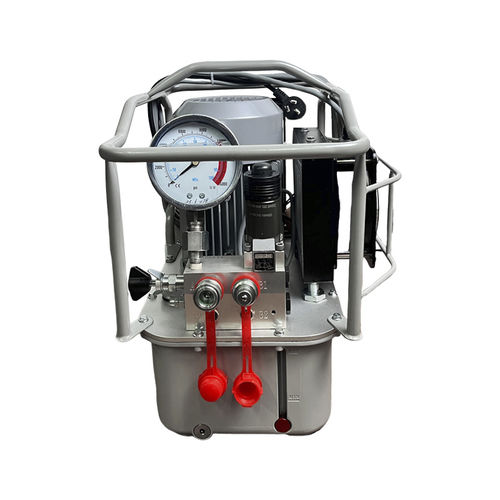

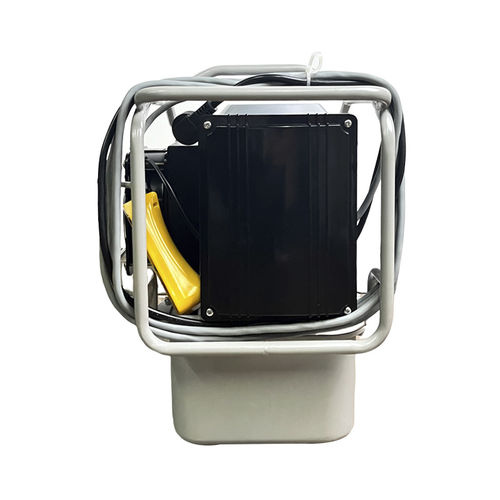

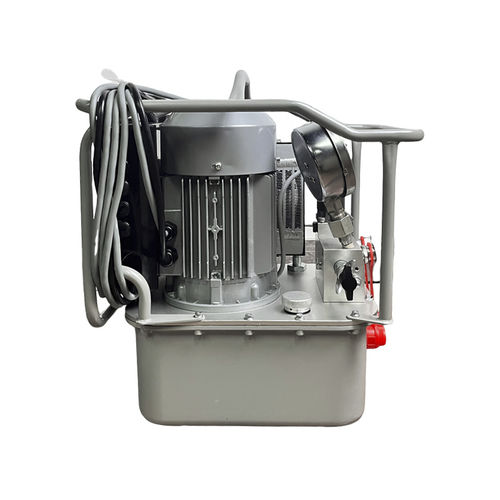

Three-stage pump TYD-SWP4000
برند:
TianYuDa Precision Machinery
مشخصات:
1. Three kinds of pressure, three kinds of flow output automatically switch, improve work efficiency
2. Standard configuration can drive two hydraulic spanners at the same time (can be customized to drive four hydraulic spanners at the same time
3. Aluminum titanium alloy pump body, light weight, easy to carry
4. The output pressure can be adjusted freely in the range of 40~700bar
5. High performance radiator, when the oil temperature reaches 35℃, the fan starts to ensure long time work
1 .The pump is designed as a three-stage pump, the three-stage flow and pressure are automatically switched, and the output of large flow at low pressure is automatically realized, and the output of small flow at high pressure is realized, and the input power is reasonably distributed. So as to achieve the purpose of energy saving, high efficiency, low carbon and environmental protection.
2. The pump head of the pump is symmetrically arranged by a plurality of radial plunger pumps, which makes the pump compact in structure, runs more smoothly, and greatly improves the service life of the pump.

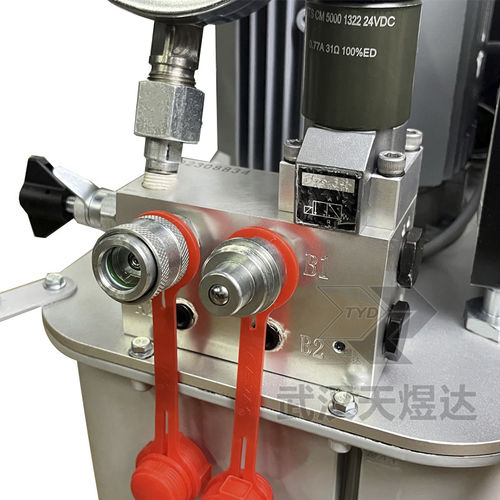

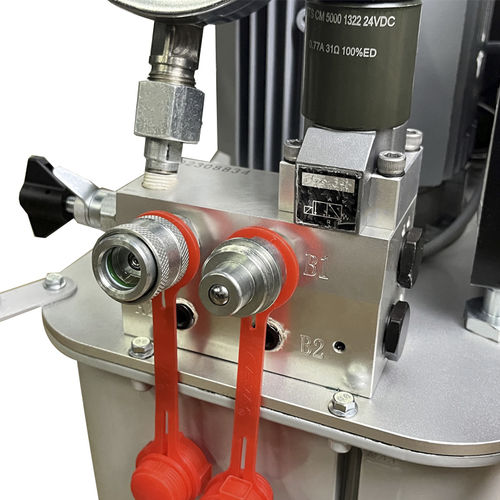

3. All the control valves in the pump are all highly integrated cartridge valves. Make modularization, standardization and large-scale production possible. Increased efficiency in production, assembly and maintenance.
4. The electric control part of the pump uses the special integrated circuit board for electric pump independently developed by our company.
توضیحات:
Fluid
oil
Operation
electric
Priming
normal priming, power priming
Technology
plunger
Mobility
mobile
Domain
industrial
Applications
work, control, for torque wrenches
Material
stainless steel, steel
Protection level
standard
Other characteristics
compact, standard, three-stage, flow, integrated
Flow
Min.: 1.1 l/min(0.29059 us gal/min)Max.: 9 l/min(2.37755 us gal/min)1.1 l/min, 3.5 l/min(0.29059 us gal/min, 0.9246 us gal/min)
Pressure
Min.: 0 MPaMax.: 70 MPa
Power
1.1 kW(1.5 hp)
Length
40 cm(16 in)
Width
31 cm(12.2 in)
Height
44 cm(17.32 in)
Weight
28 kg(61.73 lb)
