نام محصول:
پمپ سرنگ
نام انگلیسی:
Syringe pump PT-SP
برند:
Pharma Test Apparatebau AG
مشخصات:

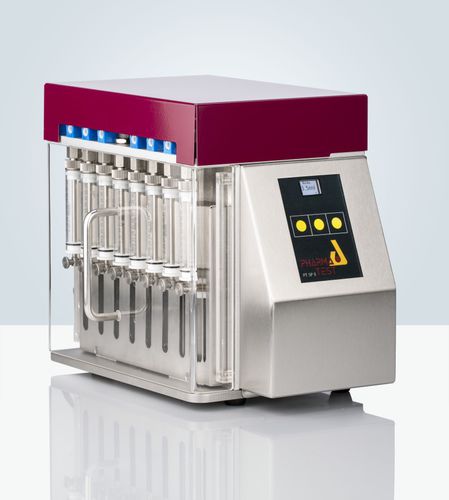

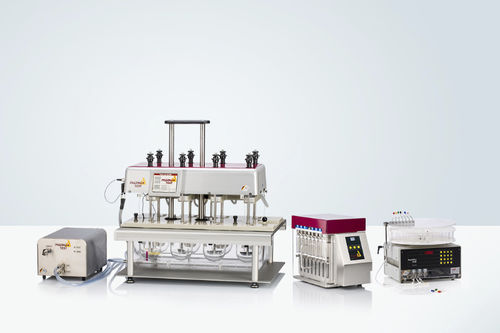

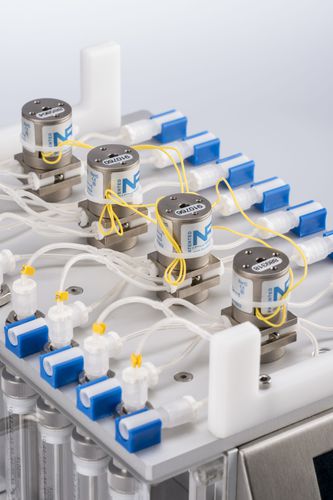

The PT-SP multi-syringe pump is designed specifically for parallel sample withdrawal and dosage of media from a dissolution bath into open vials inside a fraction collector. It is equipped with up to 8 replaceable 10ml high precision glass syringes. Each syringe is connected to a 3-way pinch valve for media flow control. The drive of the syringes is carried out simultaneously by a stepper motor. All syringes are rigidly connected to the common sturdy drive bar.
Operating Principle
The high resolution of the steps for a full stroke ensures a high accuracy of dosing and sampling. Depending on the tube dimensions and the volume to be dosed, the sampling and dosing rate can be adjusted. The complete cycle for a withdrawal of the sample medium and emptying of all tubes and syringes is fixed. First, the hose lines are filled, drained back into the reservoir and then refilled. This ensures an equal concentration of media inside the tubes, syringes and vessels. The withdrawal cycle that takes place depends on the volume to be sampled and will be done in either one or two steps. This is determined automatically by the programming of the PT-SP according to the volume of the syringes.
Media Refilling and Linking of PT-SP8
A second PT-SP multi-syringe pump is used as the media refilling pump. It is connected to the master PT-SP pump and automatically triggered by the master pump to refill the programmed volume. This way the refilling pump starts automatically once a complete sampling sequence is finished.
توضیحات:
Operation
electric
Technology
syringe
Mobility
stationary
Applications
dosing, sampling
Flow
Min.: 0 l/min(0 us gal/min)Max.: 0.02 l/min(0.00528 us gal/min)
