نام محصول:
پمپ سرنگ
نام انگلیسی:

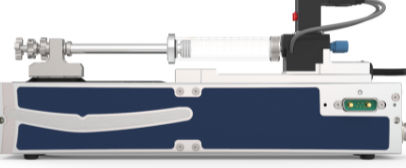

Syringe pump Nemesys S
برند:
CETONI GmbH
مشخصات:
Syringe pump
Nemesys S
Well thought out down to the smallest detail
Do you work in research and development and are you reaching physical or technical limits with conventional conveyor systems?
Then a Nemesys Flow System is right for you!
Based on the findings from years of market observation in microfluidics as well as the suggestions of our customers from a wide variety of application areas, we have revolutionized the proven Nemesys syringe pumps in the low-pressure and medium-pressure range and thus created a new class standard.
The Nemesys S and M generation in particular has been given a more rigid design. This innovation increases your applications in combination with a path resolution of approx. 178,000 increments per millimeter in terms of dosing accuracy and uniform flow behavior to a higher level. With new safety features, such as force measurement, newly designed syringe series, intelligent valve technology and flexible installation and stand options, you can master dosing tasks in the microfluidic laboratory of the future without compromise.
So you can concentrate on your research
The high-precision and pulsation-free dosing of liquids on a micro and nanoliter scale places the highest demands on the pump technology used. In the field of biology and biochemistry, it is not a question of high pressures, but rather a very homogeneous flow behavior, even at the lowest flow rates, as well as a quick response to changes in flow rates. We have optimized these core properties in our syringe pumps in such way that you can easily achieve perfect results with them.
توضیحات:
Fluid
for chemicals
Operation
electric
Technology
syringe
Mobility
stationary, mobile
Domain
industrial, laboratory
Applications
dosing, medium-pressure, high-precision
Voltage
24 V
Other characteristics
standard, low-pressure, micro
Flow
Min.: 0.008 l/min(0.00211 us gal/min)Max.: 38.26 l/min(10.10722 us gal/min)
Pressure
8 bar, 10 bar(116.03 psi, 145.038 psi)
Power
9 W(0.01 hp)
Fluid temperature
Min.: -40 °C(-40 °F)Max.: 75 °C(167 °F)
Length
310 mm(12 in)
Width
56 mm(2.2 in)
Height
129 mm, 145 mm(5.08 in, 5.71 in)
Weight
2.25 kg(4.96 lb)
