نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:
Centrifugal pump PROLAC HCP series
برند:
INOXPA
مشخصات:

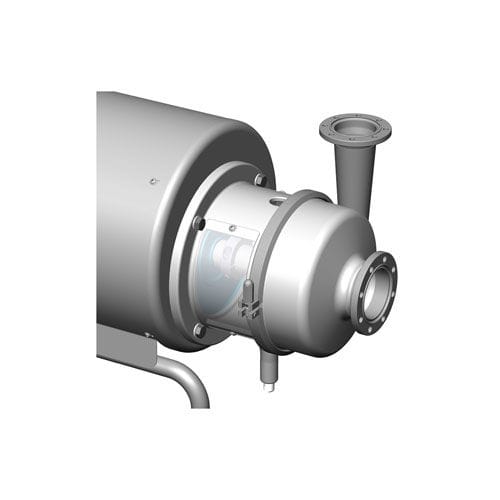

PROLAC HCP is a range of close-coupled centrifugal pumps with hygienic design, compact and highly efficient. It is made of a cold-formed stainless steel casing, impeller, mechanical seal, pump cover, lantern and shaft, connected to the motor shaft by mechanical compression.
The motor complies with the IEC standards, it is protected with a stainless steel shroud and provided with the height adjustable hygienic designed legs.
The pump is EHEDG certified, it is especially designed for CIP/SIP without disassembly.
The pump is authorized to carry 3-A symbol.
Note: Consult the options of the pumps authorized to carry 3-A symbol.
Mechanical seal
The PROLAC HCP centrifugal pump is provided with an internal single mechanical seal. The seal is balanced and has a hygienic design. As standard, the stationary part is in carbon and the rotary part is in silicon carbide, the gaskets are in EPDM. However, when required, other material can be used.
Parts in contact with the product Stainless steel AISI 316L (1.4404)
Other steel parts Stainless steel AISI 304 (1.4301)
Gaskets in contact with the product EPDM
Mechanical seal:
Rotary part Silicon carbide (SiC)
Stationary part Carbon (C)
Gaskets EPDM
Pump casing with drain port.
Pump casing with heating chamber.
Different types of connections.
Mechanical seal: SiC/SiC or TuC/SiC.
Double mechanical seal.
Gaskets: FPM or FFKM.
توضیحات:
Fluid
for food products
Operation
with electric motor
Technology
centrifugal
Mobility
stationary
Domain
for the food and beverage industry, for the pharmaceutical industry, for the cosmetics industry, for hygienic applications
Applications
transfer, discharge
Material
stainless steel
Voltage
400 V, 230 V
Protection level
chemical-resistant
Other characteristics
compact, high-efficiency, with mechanical seals, close-coupled, adjustable, seal
Flow
220 m³/h(7,769.22668 ft³/h)
Pressure
16 bar(232.06 psi)
Head
140 m(459’03” )
Power
Min.: 0.37 kW(0.5 hp)Max.: 45 kW(61.18 hp)
Fluid temperature
Min.: -10 °C(14 °F)Max.: 140 °C(284 °F)
Input diameter
50 mm, 65 mm, 80 mm, 100 mm(1.969 in, 2.559 in, 3.15 in, 3.937 in)
Output diameter
40 mm, 50 mm, 65 mm, 80 mm(1.575 in, 1.969 in, 2.559 in, 3.15 in)
Length
Max.: 1,105 mm(44 in)Min.: 445 mm(18 in)
Height
Max.: 830 mm(32.68 in)Min.: 340 mm(13.39 in)
Weight
Max.: 399 kg(879.64 lb)Min.: 18 kg(39.68 lb)
