نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:

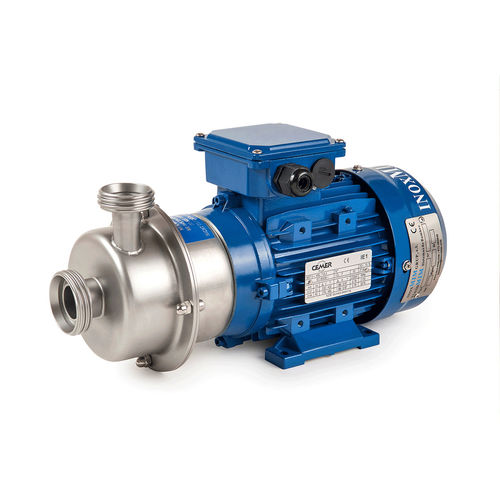

Centrifugal pump FL20C
برند:
InoxMIMGrup S.L.
مشخصات:
The FL20C centrifugal pump is well known for its small size and high performance. Despite their small size, these pumps can provide flows up to 12 m3/h with good outcomes. FL20C pumps can be used in transferring and handling applications of low viscosity products such as water, oils, glycols and wines.
CHARACTERISTICS
Level of finish: Industrial
Material: SS AISI 316
0.37kW motor at 3000 turnovers per minute
0.25kW motor at 1500 turnovers per minute
Impeller: ø90 Half-open impeller
Suction / Discharge: 1″ / BSP
OPTIONS
Motor covering
Other connections: DIN 11851,
CLAMP, SMS, etc.
Platform, trolley
توضیحات:
Fluid
water, for wine, oil
Operation
with electric motor
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
transfer, discharge, handling
Material
stainless steel
Other characteristics
compact, suction, small, open
Flow
12 m³/h(423.776 ft³/h)
Power
0.25 kW, 0.37 kW(0.34 hp, 0.5 hp)
Weight
8 kg, 12 kg(17.64 lb, 26.46 lb)
