نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:
Centrifugal pump ESLHT series
برند:
DESMI Pumping Technology A/S
مشخصات:

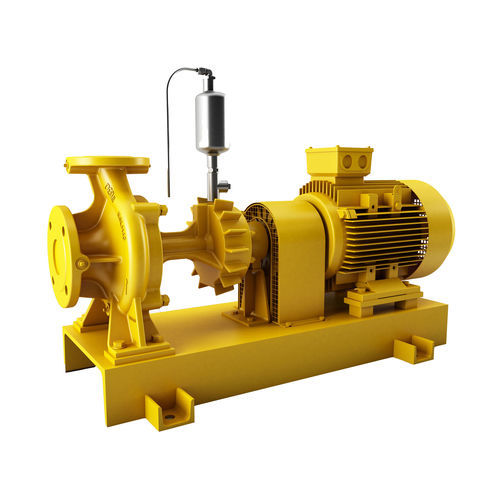

DESMI ESLHT horizontal end suction centrifugal pump designed for high media temperatures for boiler water application and district heating applications up to 180°C.
Concept Features:
• Duplex stainless steel shaft.
• Closed impeller design to achieve high efficiency even in small capacity pumps.
• Carbon sleeve bearing as main bearing to obtain optimal performance in self-lubrication and heat resistance.
• Balanced mechanical shaft seal to increase sealing reliability by its less seal face wear / heat development.
• Separate shaft seal chamber with cooling fins located away from main pump casing to protect shaft seals from heat transfer.
• Back pull design without disturbing pump casings and external pipes during maintenance.
• Automatic air vent valve on top of shaft seal chamber to prevent dry run and/or overheating seal.
• Air fan on flexible coupling for cooling of bearing and shaft seal arrangement.
Application areas:
• High temperature water circulation.
• District heating purposes.
توضیحات:
Fluid
water
Operation
with electric motor
Priming
self-priming
Technology
centrifugal
Mobility
stationary
Domain
industrial
Applications
transfer, cooling, circulation, feed, boiler
Material
stainless steel
Other characteristics
horizontal mount, small, with mechanical seals, with closed impeller, heating
Flow
100 m³/h, 120 m³/h(3,531.46667 ft³/h, 4,237.76001 ft³/h)
Pressure
30 bar(435.113 psi)
Head
65 m(213’03” )
Fluid temperature
180 °C(356 °F)
Length
Min.: 680 mm(27 in)Max.: 720 mm(28 in)
Width
420 mm(16.54 in)
Height
579 mm, 632 mm(22.8 in, 24.88 in)
Weight
110 kg, 420 kg(242.51 lb, 925.94 lb)
