نام محصول:

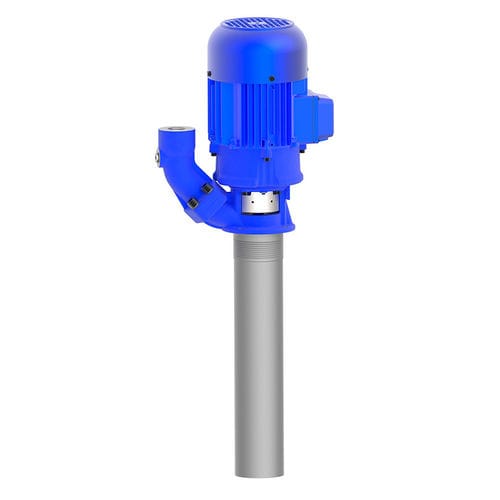

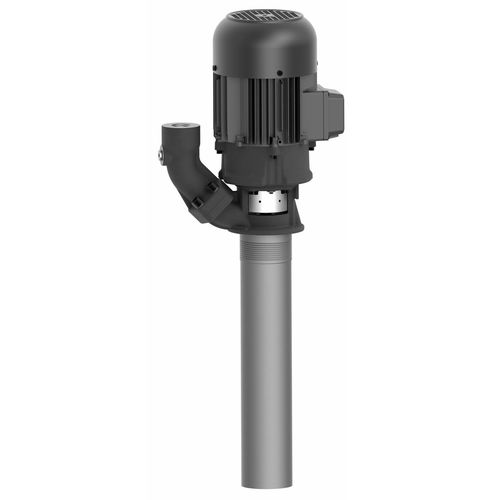

پمپ سانتریفیوژ
نام انگلیسی:
Centrifugal pump (S)TC25 series
برند:
Brinkmann Pumpen
مشخصات:
Immersion Pumps
Our multistage pump models (S)TC25…(S)TC460 have been especially developed to supply internally cooled tools with coolant fluid.
Closed impellers provide optimal hydraulic efficiencies while minimizing power consumption.
A frequency converter can be supplied for special applications or for matching the pump characteristic to a specific duty point.
See page “Control/Regulation” in the Technical Information section of this catalog for further information.
Extended length is possible. See medium pressure pumps features within the technical information section.
Applications
Types of fluid – – Industry water
coolants
cooling/cutting oils –
Kinematic viscosity – – …25 mm²/s (25 cSt) –
Pumping temperature – – 0…60° C
Construction
Pump body – – cast iron
Pump shell – – steel
Cover – – PBTP
Intake strainer – – steel
Impellers – – PBTP
Shaft – – steel
Mechanical seal – – SiC
O-rings – – Viton
Optional: – –
Pump body – – CrNi-steel
Pole-changing motor – – 4 – 2 poles
Threaded inlet – – G 1 ¼
– –
Noise level – – 58 dBA ((S)TC25/260…(S)TC25/805)
63 dBA ((S)TC25/810)
توضیحات:
Fluid
for industrial water, for coolant, for lubricants
Operation
electric
Priming
semi-submersible
Technology
centrifugal
Mobility
stationary
Domain
industrial, for the metallurgical industry, for machine tools
Applications
cooling, for emulsions, medium-pressure, for cooling systems
Material
stainless steel, cast iron
Fluid specification
cutting fluid
Voltage
380 V, 460 V
Protection level
immersion
Other characteristics
compact, high-efficiency, with mechanical seals, multi-stage, radial, with closed impeller, with frequency converter, multicellular
Flow
10 l/min(2.64172 us gal/min)
Head
Min.: 28 m(91’10” )Max.: 140 m(459’03” )
Power
Min.: 0.48 kW(0.65 hp)Max.: 1.75 kW(2.38 hp)
Height
276 mm, 317 mm, 345 mm, 367 mm(10.87 in, 12.48 in, 13.58 in, 14.45 in)
Weight
Min.: 11 kg(24.25 lb)Max.: 25 kg(55.12 lb)
