نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:

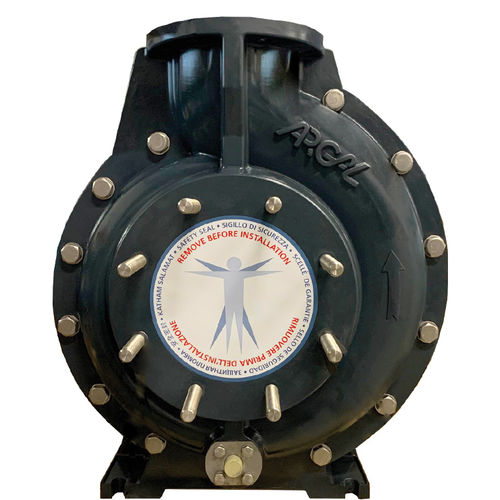

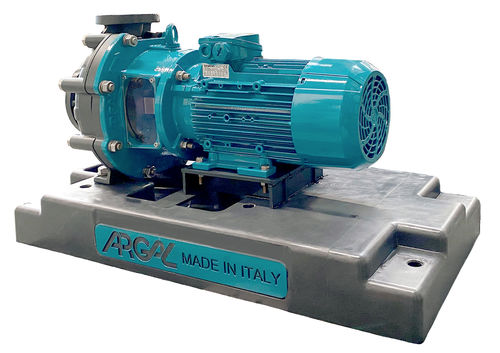

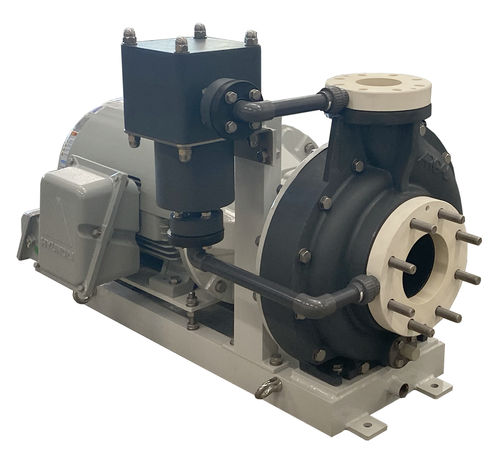

Centrifugal pump SATURNevo
برند:
Argal Pumps
مشخصات:
Available in 3 versions and settable in many different configurations, the fiberglass pumps SATURNevo have superior benefits and are ideal for seawater applications and corrosive liquids and atmospheres.
• Excellent mechanical strength and chemical resistance
• Performance efficiency superior to 80% guaranteeing high-quality consistent over time
• Vinylester resin reinforced with fiberglass is free from liquid aggression (corrosion) and therefore does not release particles or substances that can alter the liquid
• Back pull-out system for long-coupled version (= easy maintenance)
• ANSI/ASME B73.1 conformity
• Upon request: ATEX Zone 2 (II 3G Ex h IIB T4 Gb X) with conductive liner
• Lightweight thanks to the material and ARGAL technology
• Impeller made of FRP reinforced with carbon fiber for more strength (cavitation issues are reduced to minimum)
• Baseplate entirely made of FRP and adjustable
• Feet and flanges reinforced
• 80% customizable with the ARGAL TAILOR-MADE Program
• FRP accessories to empower or adapt the pump to any system
• Upon request: possibility to choose the color of your pump
Applications
The perfect match between chemical resistance, mechanical strength, lightweight, and good quality/price ratio makes SATURNevo pumps the solution as an alternative to metallic pump for all corrosive and seawater applications:
• Aquarium, zoos, and aquatic parks
• Aquaculture
• Desalination
• Seawater processes
• Chemical processes
• Power plant
• Oil & Gas
• Pharmaceutical
• Metal and mineral industry
• Water and wastewater treatments
توضیحات:
Fluid
for seawater, for gas
Operation
with electric motor
Technology
centrifugal
Mobility
stationary
Domain
industrial, for the chemical industry, for water treatment, for the pharmaceutical industry, for oil industry applications, for the metallurgical industry
Applications
for thermal power plants
Fluid specification
for corrosive fluids
Protection level
chemical-resistant, ATEX
Other characteristics
compact, adjustable, close-coupled, reinforced, ANSI
Flow
1,350 m³/h(47,674.80007 ft³/h)
