نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:

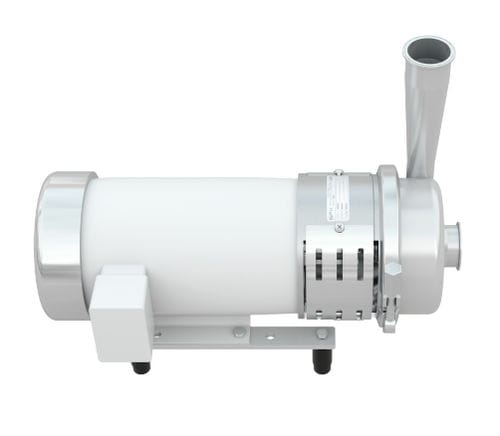

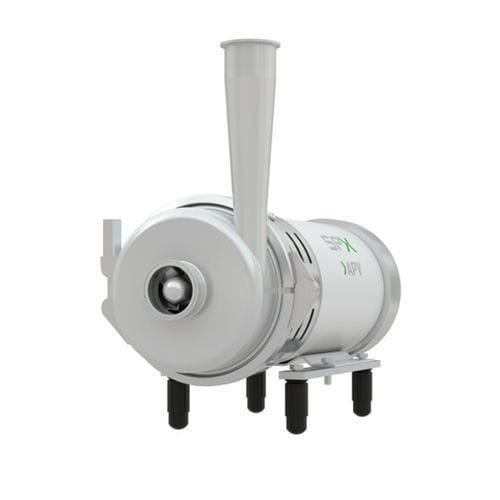

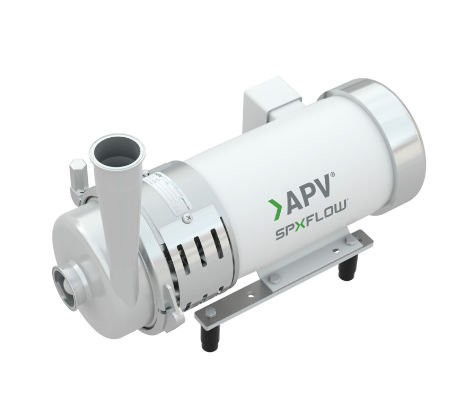

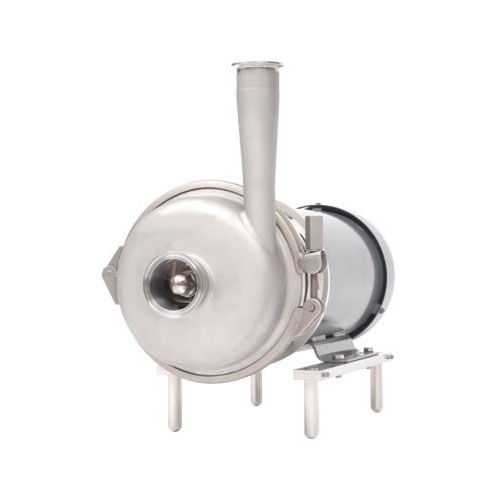

Centrifugal pump W+ series
برند:
APV
مشخصات:
W+ centrifugal pumps from SPX FLOW are designed to achieve total cost optimization with high efficiency and product dependability. They are installed in countless process facilities around the world helping producers meet stringent production requirements. The W+ Pump runs with the same rugged reliability you’ve come to expect from SPX FLOW products. Its versatile design helps increase process efficiency and maximize productivity while offering several innovative features such as:
Reliable and heavy duty design
Energy efficient
Quiet performance with minimal vibration
Superior shaft seal design
High pressure capability
3-A
Designed for CIP (Cleaning In Place) as well as SIP (Sterilizing In Place)
Suitable for wide variety of food, beverage and pharmaceutical products
Wide range of optional features available
Easy and cost effective maintenance

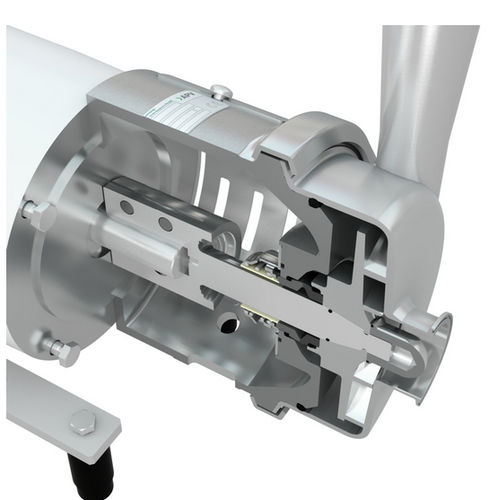

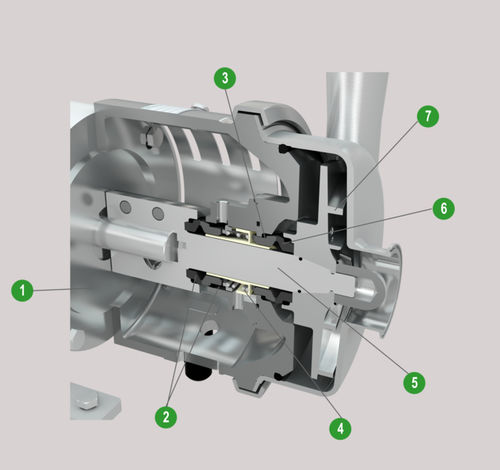

Seal Advantages:
Internal seal design optimizes cooling and lubrication of seal surfaces while the seal chamber is built to efficiently dissipate heat. Both work to reduce risk of “dry-running”
Directed flow assures thorough cleaning of seal area
The stationary spring is located outside the product contact area to maintain cleanliness
Two sizes cover all models
Front loading seal simplifies maintenance: only the pump housing and impeller have to be disassembled, then the product seal faces can be replaced quickly from the front
Can easily be rebuilt into a double mechanical shaft seal for use with water flushing or with a barrier medium for aseptic applications
Double mechanical is mirror image of single: same seal faces and o-rings
توضیحات:
Fluid
for chemicals, for food products, oil
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
industrial, for the chemical industry, for the pharmaceutical industry, for the food and beverage industry, for the cosmetics industry, sanitary
Applications
high-pressure
Material
stainless steel
Other characteristics
suction, heavy-duty, rugged
Flow
Max.: 2,300 us gal/min(8,706.4471 l/min)Min.: 32 us gal/min(121.13318 l/min)
Pressure
14 bar, 18 bar, 20 bar, 25 bar(203.053 psi, 261.068 psi, 290.075 psi, 362.594 psi)
Head
Max.: 450’00” (137.16 m)Min.: 17’00” (5.18 m)
Fluid temperature
Max.: 95 °C(203 °F)Min.: 0 °C(32 °F)
