نام محصول:
پمپ سانتریفیوژ
نام انگلیسی:

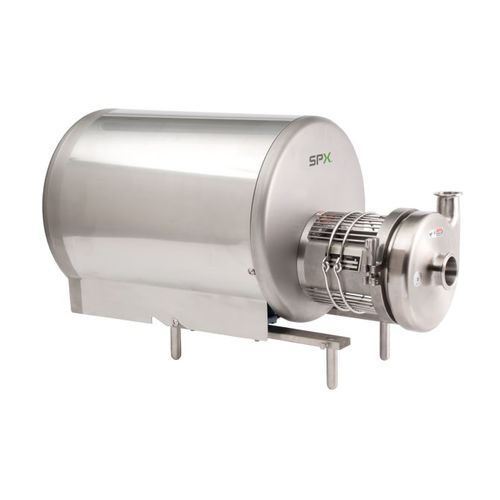

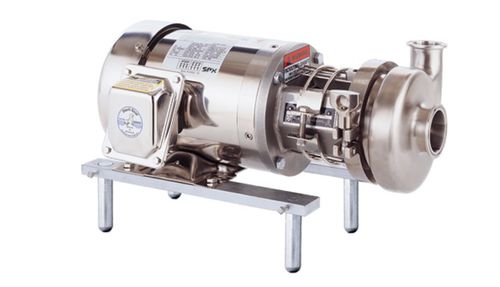

Centrifugal pump C series
برند:
APV
مشخصات:
This pump offers strong performance and competitive price/value within the lower spectrum of heavy-duty, centrifugal pump applications. It can be installed in a series without fear of seal failure from elevated inlet pressures, even with viscous products.
– Hydraulic balancing reduces pressure at sealing surface for less wear, greater efficiency
– Easy-cleaning, open type impeller delivers smooth pumping performance
– Enlarged inlets available for larger suction lines
– Standard CIP capability
– Pump and parts are interchangeable with other C-Series brands
توضیحات:
Fluid
beverage, for dairy products, oil
Operation
electric
Technology
centrifugal
Mobility
stationary
Domain
for the food and beverage industry, sanitary
Applications
process
Material
stainless steel
Other characteristics
suction, heavy-duty, high-performance
Flow
Max.: 204 m³/h(7,204.19201 ft³/h)Min.: 7 m³/h(247.20267 ft³/h)
Pressure
1.75 bar(25.382 psi)
Head
Max.: 97 m(318’02” )Min.: 5 m(16’04” )
Fluid temperature
95 °C(203 °F)
