نام محصول:

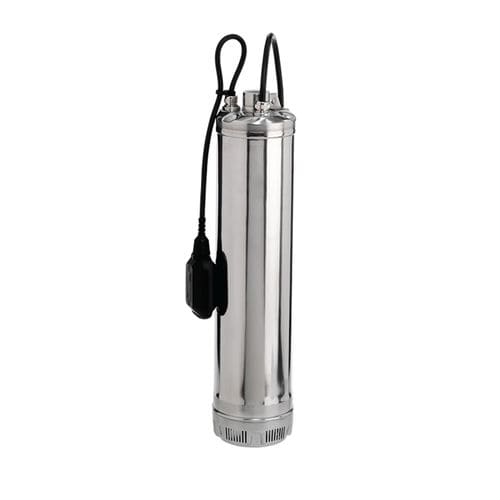

پمپ زیر آب
نام انگلیسی:
Submersible pump CS Series
برند:
Franklin Electric
مشخصات:
5″ Stainless steel close-coupled submersible multistage pumps
Applications
◘ Water Distribution / Pressure Boosting
◘ Rainwater Recovering
◘ Irrigation, Gardening, Sprinklers
◘ Wash down unit
◘ Slightly corrosive liquids
◘ Water supply to and from tanks, reservoir and wells
COMPACT CLOSE-COUPLED DESIGN
◘ Easy installation: the single-phase version have internal capacitor and thermic motor-protection thus is not necessary to connect the electric
pump to a control panel
◘ Compact close-coupled design, robust and corrosion resistant
◘ Plug-in type power cable and level control (floater) for easy replacement
◘ Motor cooling is guaranteed by the pumped liquid
◘ Continuous operation either in vertical or horizontal position
HIGH QUALITY MATERIALS
◘ Heavy duty over size motor shaft
◘ Stainless steel water proof capsule to protect the motor
◘ Double mechanical seal separated by an oil chamber* for maximum motor protection
توضیحات:
Fluid
water
Operation
with asynchronous motor
Priming
submersible
Technology
centrifugal
Mobility
mobile
Domain
industrial
Applications
irrigation, distribution, level control, for sprinkler installations
Material
stainless steel
Fluid specification
for corrosive fluids
Protection level
corrosion-resistant, robust, washdown
Other characteristics
compact, mechanical, heavy-duty, multi-stage, close-coupled, vertical, seal, waterproof
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 8 m³/h(282.51733 ft³/h)3 m³/h, 5 m³/h(105.944 ft³/h, 176.57333 ft³/h)
Pressure
10 bar(145.038 psi)
Head
Min.: 14 m(45’11” )Max.: 80.5 m(264’01” )
Power
Min.: 0.55 kW(0.75 hp)Max.: 1.1 kW(1.5 hp)
Fluid temperature
Min.: -5 °C(23 °F)Max.: 40 °C(104 °F)
Length
720 mm(28 in)
Width
230 mm(9.06 in)
Height
175 mm(6.89 in)
Weight
Min.: 12 kg(26.46 lb)Max.: 17.1 kg(37.7 lb)
