نام محصول:
پمپ روغن معدنی
نام انگلیسی:
Mineral oil pump 0205-301
برند:
Lutz Pumpen GmbH | Lutz-Jesco GmbH
مشخصات:

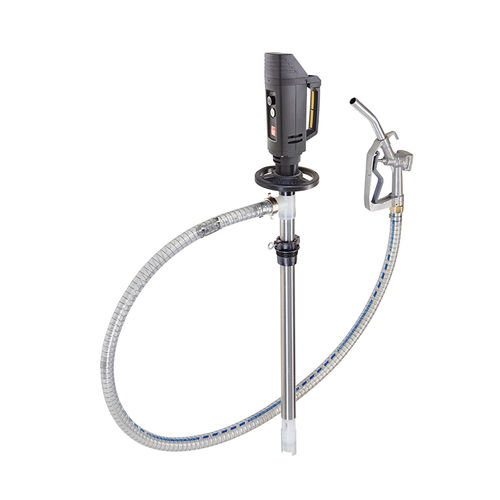

Battery Pump set – Mineral oils

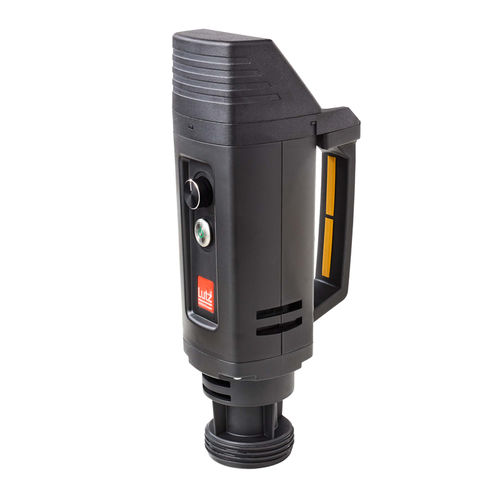

The new B3 Battery is a battery motor for demanding and efficient pump applications. The current-independent application range enables the greatest possible flexibility with the world’s highest volume flow of a battery pump (up to 180 l/m). Perfectly suited for the extraction or transfer of mineral oils.
* Media examples: Diesel, heating oil, hydraulic oil, machine oil and motor oil etc.

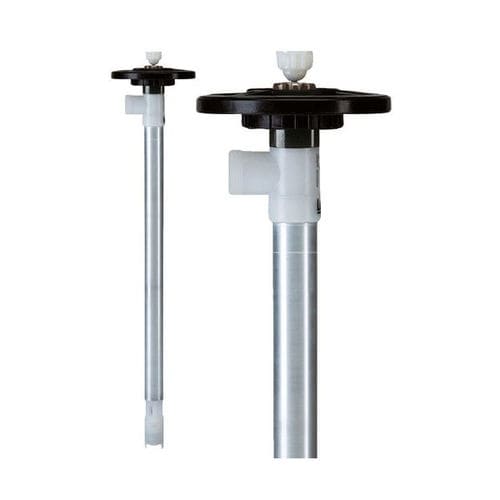

* Pump tube equipped with Lutz original hand wheel
* Suitable for filling or decanting alternative fuels
Features & Advantages
* wear-free, particularly low-noise BLDC motor
* optimized drum emptying
* infinitely variable
* extremely high performance with low weight
* Maintenance without special tools
* Sealing modules of the sealless (DL) pump can be replaced
* long service life
توضیحات:
Fluid
oil
Operation
pneumatic
Priming
self-priming
Technology
impeller
Mobility
stationary
Domain
industrial, for oil industry applications, for the automotive industry, for the printing industry
Applications
transfer, drum, drain, extraction
Material
aluminum
Fluid specification
for aggressive media, for mineral oil
Voltage
24 V
Other characteristics
radial, with variable-speed controller
Flow
Max.: 45 l/min(11.88774 us gal/min)Min.: 0 l/min(0 us gal/min)
Head
Max.: 11.8 m(38’08” )Min.: 0 m(0’00” )
Power
320 W(0.44 hp)
Fluid temperature
50 °C(122 °F)
Input diameter
41 mm(1.614 in)
