نام محصول:
پمپ روغن سوخت
نام انگلیسی:
Fuel oil pump 0207-210
برند:
Lutz Pumpen GmbH | Lutz-Jesco GmbH
مشخصات:

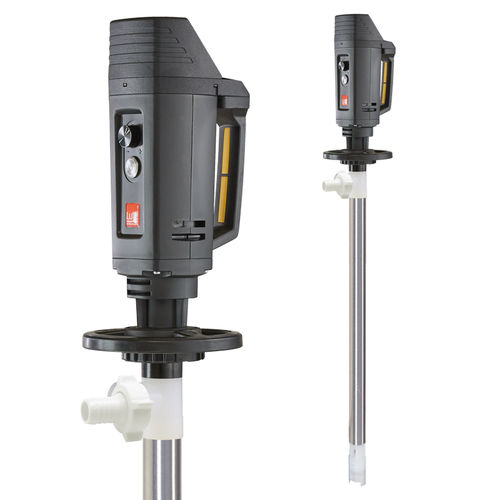

Battery Drum pump – Mineral oils

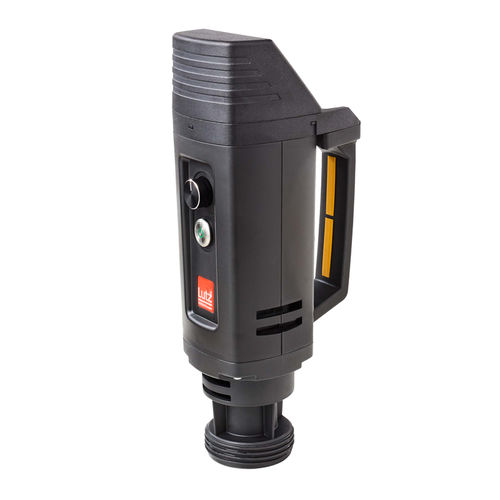

The new B3 Battery is a battery motor for demanding and efficient pump applications. The current-independent application range enables the greatest possible flexibility with the world’s highest volume flow of a battery pump (up to 180 l/m). Perfectly suited for the extraction or transfer of mineral oils.
* Media examples: Diesel, heating oil, hydraulic oil, machine oil and motor oil etc.
* Pump tube equipped with Lutz original hand wheel
* Suitable for filling or decanting alternative fuels
Features & Advantages
* wear-free, particularly low-noise BLDC motor
*optimized drum emptying
* Optimized Drum emptying
*infinitely variable
* extremely high performance with low weight
* Maintenance without special tools
* Sealing modules of the sealless (DL) pump can be replaced
* long service life
توضیحات:
Fluid
oil, fuel oil
Operation
pneumatic
Priming
self-priming
Technology
impeller
Mobility
stationary, mobile
Domain
industrial, for the chemical industry, for the petrochemical industry
Applications
transfer, drum, drain
Material
aluminum
Fluid specification
for mineral oil
Voltage
24 V
Flow
Max.: 77 l/min(20.34125 us gal/min)Min.: 0 l/min(0 us gal/min)
Head
Max.: 11.8 m(38’08” )Min.: 0 m(0’00” )
Power
320 W(0.44 hp)
Fluid temperature
100 °C(212 °F)
Input diameter
41 mm(1.614 in)
