نام محصول:
پمپ روغن خام
نام انگلیسی:

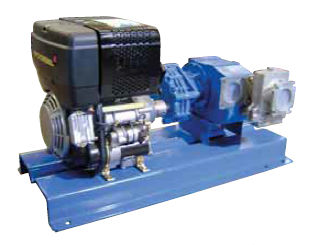

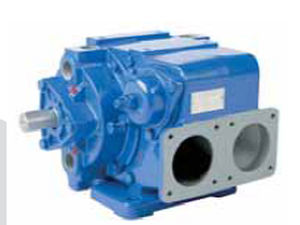

Crude oil pump CC8 series
برند:
MOUVEX
مشخصات:

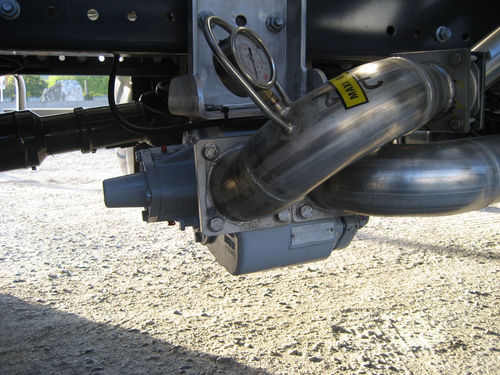

Rotary Vane Pumps are vehicle-mounted solutions for loading and unloading petroleum products for trucks and transports. These pumps are ATEX certified and compact, and feature an integrated by-pass designed to protect against excessive pressures and overheating.
Performance and Specifications
Performance
Increased safety
Integrated bypass to avoid excess pressure
Unused shaft end is protected by a casing
Compatible with diesel, heating oil, petrol, biodiesel paraffin, kerosene, oil heavy fuel and bitumen
Compact size to fit in small, narrow spaces
Double-ended shaft facilitates mounting and adapts to the direction of rotation
Broad flow range
Quiet operation
Constant flow rate over time
Line-stripping capabilities
Options
Heating jackets
Relief valves (spring; air operated, air operated + spring)
Hydraulic adapter
توضیحات:
Fluid
for crude oil, oil, fuel
Operation
diesel
Technology
rotary vane
Mobility
stationary
Domain
industrial, for automotive applications
Applications
transfer, unloading, loading
Material
stainless steel, cast iron, steel, bronze
Fluid specification
for hot oil
Protection level
ATEX
Other characteristics
compact, spring, small, heating
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 80 m³/h(2,825.17334 ft³/h)
Pressure
8 bar(116.03 psi)
Fluid temperature
70 °C(158 °F)
Weight
48 kg, 57 kg(105.82 lb, 125.66 lb)
