نام محصول:
پمپ روغن خام
نام انگلیسی:
Crude oil pump 0205-301
برند:
Lutz Pumpen GmbH | Lutz-Jesco GmbH
مشخصات:

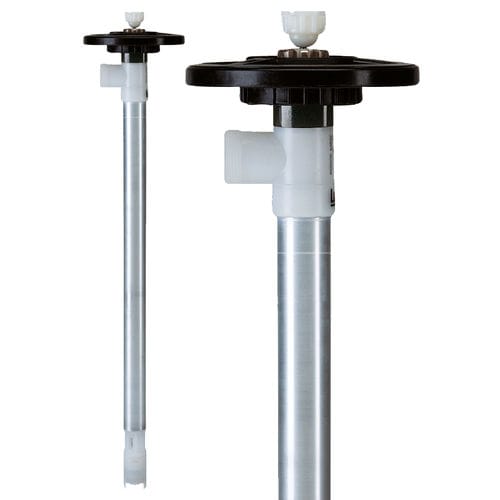

The Pump Set is suitable for thin-bodied, aggressive and non-flammable media. Perfectly suited for the extraction or decanting of mineral oils.
• Media examples: Diesel, heating oil, hydraulic oil, machine oil and motor oil etc.
• Pump tube equipped with Lutz original hand wheel
• Suitable for filling or decanting alternative fuels
Features & Advantages
• Optionally with electric or compressed air drive
• No lubricants and therefore no contamination of the pumped medium by lubricants
• Optimized Drum emptying
• Universally resistant ETFE shaft bearing
• Maintenance without special tools
• Seal modules of the seal-less (DL) pump are interchangeable
* The maximum flow rate is a value determined by means of a test bench and measured with water at a liquid temperature of approx. 20 °C . The measurement is taken at the pressure joint of the pump, without hose, nozzle or flow meter.The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump.The max. delivery head also depends on the pump design, motor and fluid.The viscosity values are determined with oil.
توضیحات:
Fluid
for crude oil, fuel oil, for diesel, lubricating oil
Operation
electric
Priming
semi-submersible
Technology
impeller
Mobility
stationary
Domain
industrial, chemical, for the petrochemical industry, for the automotive industry, for the printing industry
Applications
transfer, drum, drain, extraction
Material
aluminum
Fluid specification
for aggressive media, for mineral oil
Voltage
230 V
Other characteristics
radial, with variable-speed controller
Flow
Min.: 0 l/min(0 us gal/min)Max.: 50 l/min(13.2086 us gal/min)
Head
Min.: 0 m(0’00” )Max.: 19 m(62’04” )
Power
500 W(0.68 hp)
Fluid temperature
100 °C(212 °F)
Input diameter
41 mm(1.614 in)
