نام محصول:
پمپ رنگ

نام انگلیسی:

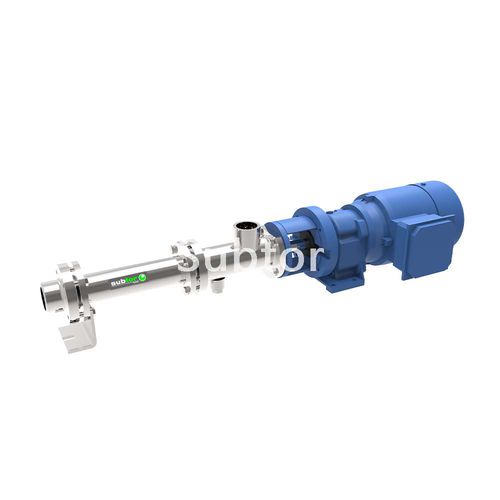

Paint pump MM

برند:
Weifang Subtor Rotating Precision Machinery Co., Ltd.

مشخصات:
The structure is exquisite, and the measurement is accurate. The rotational speed is in direct proportion to the flow strictly controlled. The measurement accuracy deviation is ± 1%, which can be…

The structure is exquisite, and the measurement is accurate. The rotational speed is in direct proportion to the flow strictly controlled. The measurement accuracy deviation is ± 1%, which can be used for accurate measurement.

Stable and pulsatile operation, modular design, unified standard configuration of German brand Nord gear reducer, reliable quality, high cost performance.

MM metering pump can be applied to automatic and accurate metering, precise and repeated metering or gluing system.

For example: coating of lithium battery, gluing of automobile seal, gluing of electronic components in electronic industry, coating of conductive paint on solar panel, and laboratory chemicals;

Precise injection, extraction, mixing and matching of medical agents

Pump type: single head long lead, single head short lead; Double head long lead, double head short lead;

Stage: the maximum bearing capacity is 72 kg. If there are special requirements, it can be specially designed;

working principle:

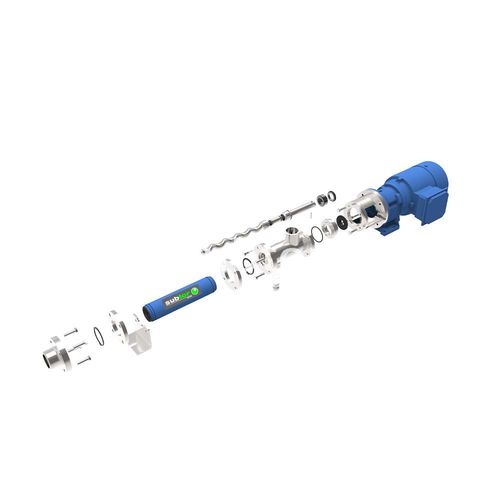

As a positive displacement pump, it forms a seal chamber that is not connected with each other by the interference fit between the eccentric rotor and the fixed stator. Through the rotation of the rotor in the stator, the seal chamber moves axially from the inlet end of the pump to the outlet end, so that the medium in the seal chamber can be transported through the pump.

توضیحات:
Fluid
paint

Operation
with electric motor

Technology
gear

Mobility
stationary

Domain
industrial, laboratory, medical, solar

Applications
metering, outlet, extraction, injection, mixing

Other characteristics
standard, double, automatic, modular, flow, electronic, seal
