نام محصول:
پمپ رنگ
نام انگلیسی:

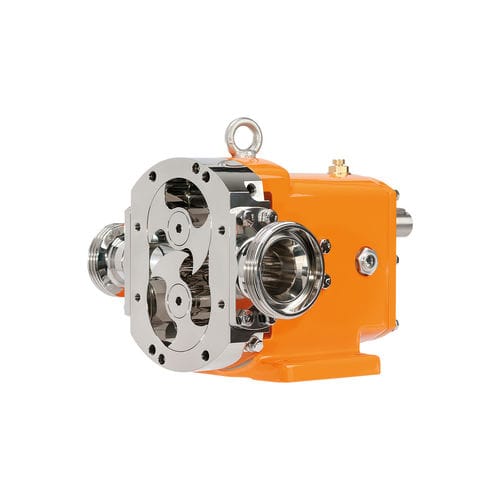

Paint pump SKK
برند:
Gebr. Steimel
مشخصات:
Paint pumps / Varnish pumps
Gear pumps or Rotary lobe pumps
Steimel pumps for paints and varnishes are used in machines and plants for the production of pasty and liquid printing inks. Steimel pumps are used in agitator bread mills for wet milling of suspensions. By using the rotary lobe pump, gentle material handling of prodcuts with high solids content or pigments can be achieved. The pumps are also suitable as process pumps for processing solvent-based media and adhesives.
Typical media used in the application of paints and varnishes:
– Adhesives
– Alkyd resins
– Binders
– Epoxy resins
– Glazes
– Insulating varnishes
– Nitrocellulose lacquers
– Oil gloss paints
– Paints
– Paint solvents
– Paste
– Polyols
– Printing inks
– Resins
– Softeners
– Synthetic resin paints
– Synthetic resin glues
– Varnish
– Waxes
and more…
Designs and key data of the paint and varnish pumps:
– Gear pump or rotary lobe pump
– Operating parameters depending on model and application:
– Flow rate: max. 3.400 cm³ / rev
– Maximum pressure: 25 bar
– Operating temperature: max. 200 °C
– Viscosity range: max. 100,000 mm² / s
– Optional with pressure relief valve
– ATEX design as optional feature
– Material design:
– Rotors: Case hardening steel or stainless steel
– Housing parts: Grey cast iron or stainless steel
توضیحات:
Fluid
paint, oil
Priming
self-priming
Technology
rotary lobe
Domain
industrial
Applications
handling, process
Material
stainless steel
Protection level
ATEX
Other characteristics
rotary
Pressure
Max.: 25 bar(362.594 psi)Min.: 0 bar(0 psi)
