نام محصول:
پمپ رنگ سری Maple

نام انگلیسی:
Paint pump Maple series

برند:
CARLISLE FLUID TECHNOLOGIES

مشخصات:
Fluid
paint

Operation
air-driven

Technology
piston

Mobility
stationary

Domain
industrial, for the automotive industry

Applications
transfer

Material
stainless steel

Other characteristics
horizontal mount

Flow
Min.: 0 m³/s
(0 ft³/s)

Max.: 0.00038 m³/s
(5.94387 ft³/s)

Pressure
Min.: 0 Pa
(0 psi)

Max.: 700,000 Pa
(101.526 psi)

Input diameter
1 in, 1.5 in

Output diameter
0.5 in, 0.8 in, 1 in, 1.5 in

Weight
Min.: 20 kg
(44.09 lb)

Max.: 65 kg
(143.3 lb)

توضیحات:

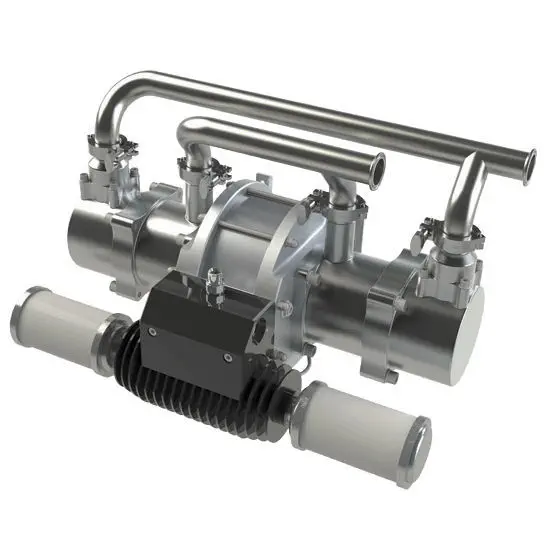

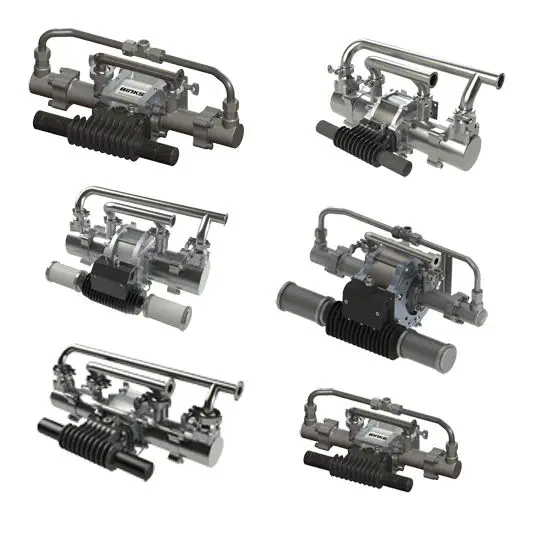

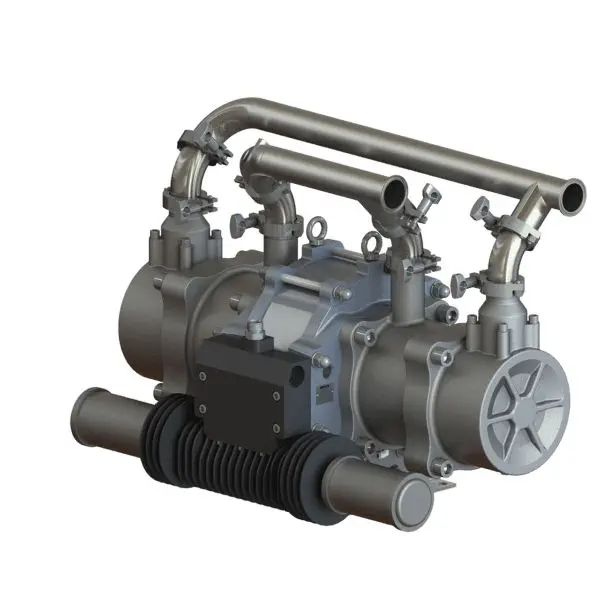

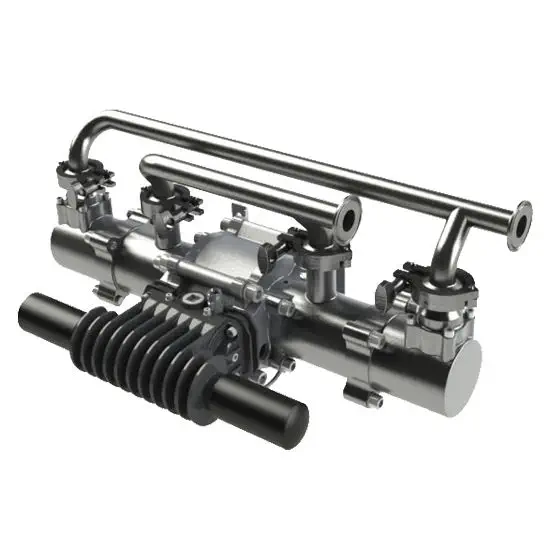

The Maple Pump is our advanced, air operated, horizontal piston pump for automotive and general industrial applications. This range of precision engineered pumps is designed to handle modern shear sensitive solvent and waterborne paints as well as pure solvents and other paint shop materials. The Maple Pump design combines an energy efficient air motor with our low shear fluid section technology providing a smooth consistent flow of material for both automatic and manual spray gun systems.

Low Ice lubricant free air motor with patented quick exhaust technology removes the risk of valve icing
Enclosed Bellows Seals – no exposed seals eliminating shaft packing lubrication and significantly reducing pump maintenance
Stainless steel fluid sections, ideal for waterborne, or solvent based paints
Tungsten Carbide ball seats and ceramic coated pistons ensure maximum, trouble free operating life
Equal thrust on each stroke produces a smooth, even paint flow
Control valve metal spool and sleeve for long life, incorporating our patented magnetic detent to eliminate stall conditions
Fluid connections guarantee a smooth internal flow and eliminate paint pockets for to ensure a superior finish
5 year pump warranty on materials and workmanship
