نام محصول:
پمپ دیزل
نام انگلیسی:

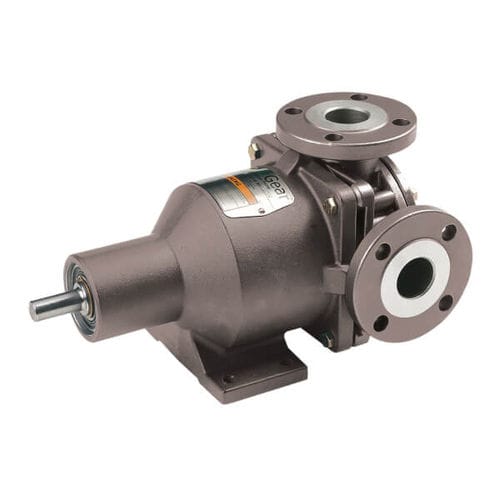

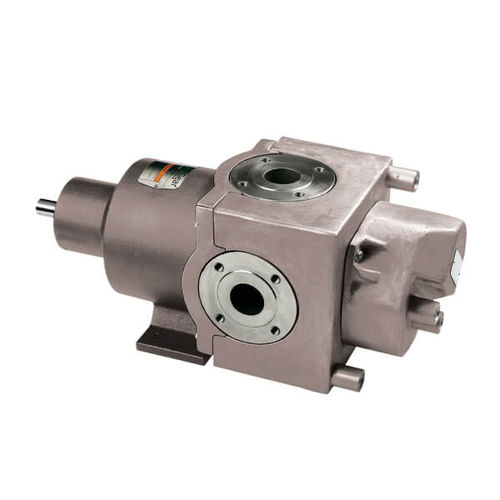

Diesel pump Blackmer® E series
برند:
Blackmer
مشخصات:
Take your pump performance to the next level with Blackmer E Series Magnetic Drive Gear Pumps. Innovative, durable and environmentally friendly, E Series Magnetic Drive Gear Pumps have been engineered to be a cut above the competition thanks to a revolutionary design with a patented between-the-bearing support system. This one-of-a-kind design eliminates leaks and reduces mechanical wear, helping increase the safety of site personnel and the environment. Material of construction options of ductile iron, carbon steel and stainless steel allow for a wide range of chemical compatibility. In addition, no other magnetically coupled pump offers a lower upfront cost, lower total cost of ownership or more reliability than the E Series Magnetic Drive Gear Pump.
Features
Between-the-Bearing Support System
Eliminates the damaging effects of cantilevered loads that are present in competitor internal gear pumps, maximizing rotor, idler and bushing life.
One Fluid Chamber Design
Greatly improves fluid circulation through the magnetic coupling, resulting in lower operating temperatures, longer magnet life, and more effective cleaning and flushing processes.
High-Torque and Compact Magnetic Coupling
High-strength magnetic couplings are standard to allow for more operational flexibility, with inner magnets mounted directly to the rotor for an extremely compact design.
توضیحات:
Fluid
for diesel
Operation
magnetic-drive
Priming
self-priming
Technology
gear
Mobility
stationary
Domain
industrial, chemical
Applications
circulation, cleaning
Material
stainless steel, carbon steel
Protection level
high-strength
Other characteristics
compact, standard, mechanical, cantilevered
Flow
Max.: 113.6 m³/h(4,011.74614 ft³/h)Min.: 3.4 m³/h(120.06987 ft³/h)
Pressure
10.3 bar, 13.8 bar(149.389 psi, 200.152 psi)
Fluid temperature
260 °C(500 °F)
