نام محصول:
پمپ دیافراگم
نام انگلیسی:

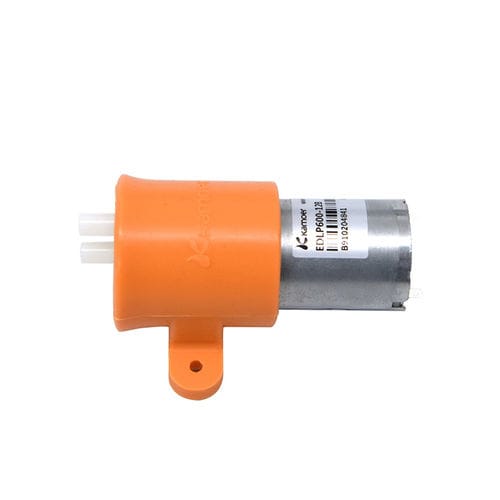

Diaphragm pump EDLP600
برند:
Kamoer Fluid Tech (Shanghai) Co.,LTD.
مشخصات:
EDLP 600 is a miniature diaphragm pump that is used in both companies and is designed according to the principle of a positive displacement pump. It is powered by the rotation of the motor. Through the eccentric wheel on the motor shaft, the rubber is driven to circulate and reciprocate, and the suction and discharge actions are formed in the cavity, and the gas is inhaled and sent out by the closing and opening of the one – way valve.
Features
Beautiful workmanship
Rugged construction
Oil – free, maintenance – free
Compact design
Low energy consumption
High and low temperature resistance
Application
Watering the flowers
Aquarium pumping
Drug irrigation
Rhinestone water supply
Laptop water cooled
توضیحات:
Fluid
water, oil
Operation
with DC motor
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
industrial
Applications
discharge
Voltage
24 V, 12 V, 6 V
Other characteristics
compact, suction, rugged, miniature
Flow
Max.: 0.6 m³/h(21.1888 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
0.04 MPa, 0.05 MPa
Power
5 W(0.01 hp)
Weight
65 g(2.29 oz)
