نام محصول:
پمپ دیافراگم
نام انگلیسی:

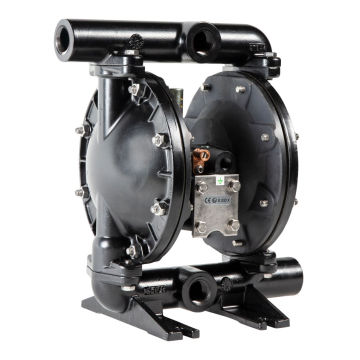

Diaphragm pump 66607A-XXX-A
برند:
ARO, Ingersoll Rand
مشخصات:
Part of our Pro Series of pumps, our 3/4” aluminum metallic diaphragm pump feature big performance in a small package. It can achieve flow rates up to 33 GPM (125 LPM) and offers a wide range of diaphragm materials and porting configurations.
Benefits
The new ARO 3/4″ aluminum air operated diaphragm pump is designed to meet your OEM application needs.
– Mobility – Compact, rugged design allows for easy mobility
– Efficiency – Motor design delivers optimum air efficiency
– Reliability – Our patented Unbalanced air valve ensures no-stall operation
– Versatility – Available in aluminum to withstand tough chemical applications
– Environmentally Sound – Bolted construction for leak-free fluid handling
– Serviceability – Easy access to ball checks and fluid caps for maintenance and repairs
توضیحات:
Fluid
for chemicals
Operation
air-driven
Priming
self-priming
Technology
diaphragm
Mobility
stationary
Domain
industrial, for the chemical industry
Applications
transfer, handling, dosing, process, distribution, filling, recirculation, for harsh environments, unloading
Material
aluminum, cast aluminum
Fluid specification
for flammable fluids, for aggressive media, for abrasive fluids, for medium-viscosity products, for low-viscosity fluids, for corrosive fluids, for hazardous fluids, for toxic fluids, for AdBlue, for used oil, for supercritical fluids
Protection level
chemical-resistant, abrasion-resistant
Other characteristics
compact, suction, single-stage, standard, OEM, small, rugged, portable, corrosion-proof, wall-mounted
Flow
Max.: 33 us gal/min(124.91859 l/min)Min.: 0 us gal/min(0 l/min)
Pressure
Max.: 120 psiMin.: 0 psi
Head
17’00” (5.18 m)
Input diameter
0.8 in
Output diameter
0.8 in
Weight
17.5 lb(7.94 kg)
