نام محصول:

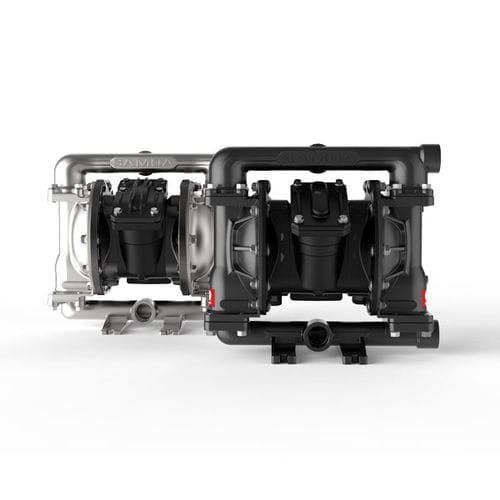

پمپ دو دیافراگم
نام انگلیسی:
Double-diaphragm pump UP10 1″
برند:
SAMOA Industrial, S.A.
مشخصات:
PIVOT Series 1” Air-operated double diaphragm (AODD) pumps are available in metallic materials such as Aluminium, and Stainless Steel, with an extensive range of diaphragms, seats and balls. They offer a wide range of applications and fluid compatibility.
These pumps are very suitable for aggressive chemicals with the presence of abrasives
PIVOT Series 1” metallic AODD pumps make the difference through:
• Exclusive Frictionless PIVOT-SHAFT Air Valve that results in:
o Higher flow delivery.
o Smooth operation.
o Reduced flow pulsations.
o No pump vibration.
o No stall operation.
o Low-pressure start up.
o No icing.
o Quick and easy servicing.
• Undersized pump to fit in any application or reduced space.
• Lateral fluid inlet and outlet ports avoid leaking directly onto the pump.
• Universal standards:
o Matches relative dimensions of main competitive brands, allowing easy swap-over.
o Easy swap-over and upgrading of your old pumps.
Metallic structure:
• Electrophoretic epoxy coating in Aluminium versions for longer corrosion resistance.
• Superior abrasion resistance.
• Increased resistance to corrosive fluids, harsh atmospheres, high tensile, and aggressive temperatures
• Very robust design for longer operation lifetime to clamped pumps.
• Optimized design for maximum performance.
• Premium materials for a long and reliable service life.
ATEX certified
Can be configured to connect a Smart Pump-Controller System to activate, control and monitor your pumps.
توضیحات:
Fluid
water, for chemicals, slurry, lubricating oil, fuel, for powders
Operation
pneumatic
Priming
self-priming, submersible
Technology
double-diaphragm
Mobility
stationary
Domain
industrial, for the chemical industry, for water treatment, for maritime applications, for the petrochemical industry, for the mining industry, for the glass industry, for the steel industry, for the metallurgical industry, for renewable energy, for the paper industry, for the cosmetics industry, for the construction industry, for public works, for foundry applications, for the printing industry, for the textile industry
Applications
process, transfer, circulation, surface treatment, recycling, recirculation, distribution, recovery, sewage, IBC, for printing machines, sanitation, drain, unloading, volumetric dispensing, cleaning, for low-pressure applications, lubrication, dewatering, high-volume, chemical process, suction, refueling, for hazardous locations, level control, drainage, for harsh environments
Material
stainless steel, aluminum, metal
Fluid specification
for used oil, for aggressive media, for abrasive fluids, for solids-laden fluids, for refrigerant fluids, for firefighting foam, for toxic fluids, for fluids with lubricating properties, for low-viscosity fluids, for engine oil, flavouring, for corrosive fluids, cutting fluid, for mineral oil, for brine, for AdBlue, for flammable fluids, for paper stock, for hazardous fluids, coagulant, dye
Protection level
abrasion-resistant, ATEX, robust, immersible
Other characteristics
small, compact, high-efficiency, horizontal mount, high-performance, flange, seal-less, low-noise, corrosion-proof, double-acting, self-adjusting, OEM, four-ball, heavy-duty, high-capacity, adjustable, oil-free, rugged, high-reliability, rugged, slurp, for fluids, skid-mounted, low-vibration, high-flow, mobile, variable-flow
Flow
210 l/min(55.47613 us gal/min)
Pressure
Min.: 1.5 bar(21.756 psi)Max.: 8 bar(116.03 psi)
Head
Min.: 5 m(16’04” )Max.: 8 m(26’02” )
Input diameter
1 in
Output diameter
1 in
Length
209 mm(8 in)
Height
348 mm(13.7 in)
Weight
Min.: 11.5 kg(25.35 lb)Max.: 17.5 kg(38.58 lb)
