نام محصول:

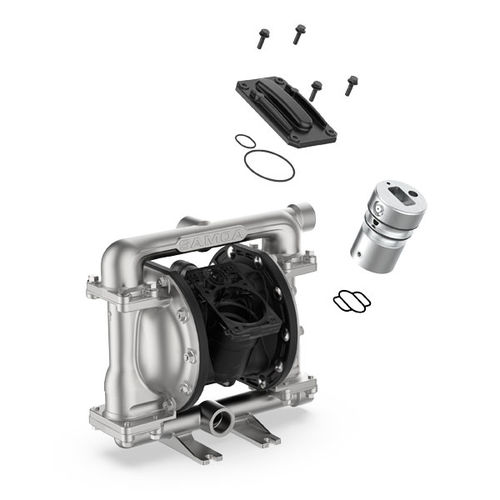

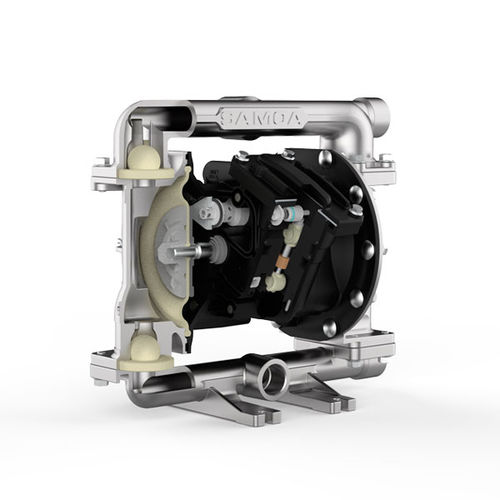

پمپ دو دیافراگم

نام انگلیسی:
Double-diaphragm pump UP10 1″

برند:
SAMOA Industrial, S.A.

مشخصات:
The 1” (25 mm) Air Operated Double Diaphragm Pumps made of cast metal can reach a flow rate of up to 200 l/min (52 gal/min) and they offer a wide range of construction materials and porting

configurations. The pump design ensures high abrasion resistance when pumping abrasive media and low flow resistance.

Opposite inlet and outlet ports as standard. The discharge and inlet manifolds can rotate 180º for maximum pump installation versatility.

These pumps are often used for transferring, filling, recirculating and batch dispensing in a variety of industries.

توضیحات:
Fluid
water, for chemicals, slurry, for lubricants, fuel, for powders

Operation
air-driven

Priming
self-priming, submersible

Technology
double-diaphragm

Mobility
stationary

Domain
industrial, for the chemical industry, for maritime applications, for water treatment, for the petrochemical industry, for the mining industry, for the glass industry, for the metallurgical industry, for the paper industry, for the cosmetics industry, for the construction industry, for the printing industry, for foundry applications, for public works, for the steel industry, for the textile industry

Applications
filling, transfer, process, sanitation, IBC, drainage, high-volume, for hazardous locations, circulation, distribution, level control, sewage, drain, for low-pressure applications, cleaning, recycling, surface treatment, for printing machines, for harsh environments, unloading, dewatering, recirculation, recovery, chemical process, suction

Material
stainless steel

Fluid specification
for aggressive media, for abrasive fluids, flavouring, for firefighting foam, for low-viscosity fluids, for corrosive fluids, froth, for mineral oil, for AdBlue, pressure powered, for flammable fluids, for used oil, for engine oil, for paper stock, for fluids with lubricating properties, coagulant, for refrigerant fluids, for toxic fluids, dye, for brine

Protection level
abrasion-resistant, submersible, ATEX, robust

Other characteristics
high-performance, compact, high-efficiency, high-reliability, mobile, horizontal mount, small, seal-less, slurp, flange, double-acting, heavy-duty, four-ball, low-vibration, skid-mounted, adjustable-flow, low-noise, OEM, high-capacity, rugged, for fluids, self-adjusting, variable-flow, high-flow, oil-free, rugged, corrosion-proof

Flow
200 l/min(52.83441 us gal/min)

Pressure
Max.: 8 bar(116.03 psi)Min.: 1 bar(14.504 psi)

Head
8 m(26’02” )

Input diameter
25 mm(0.984 in)

Output diameter
25 mm(0.984 in)

Length
209 mm(8 in)

Width
348 mm(13.7 in)

Height
317 mm(12.48 in)

Weight
11.5 kg(25.35 lb)
