نام محصول:
پمپ دو دیافراگم

نام انگلیسی:
Double-diaphragm pump PIVOT Series

برند:
SAMOA Industrial, S.A.

مشخصات:

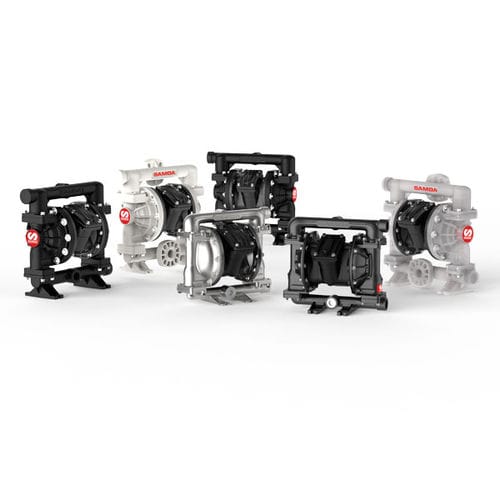

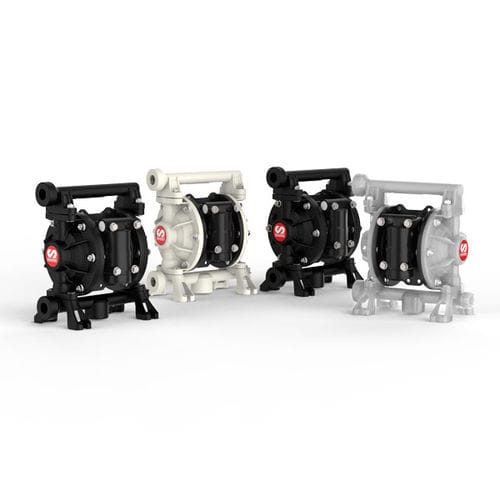

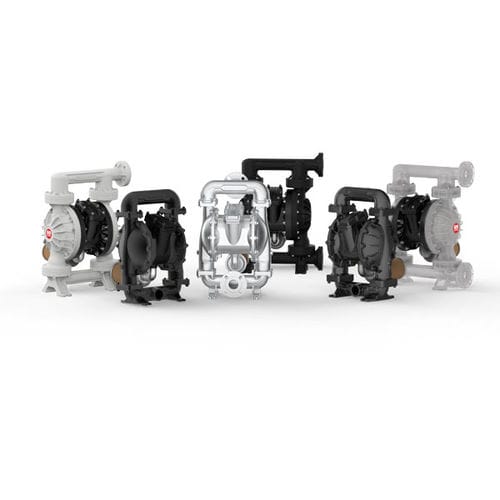

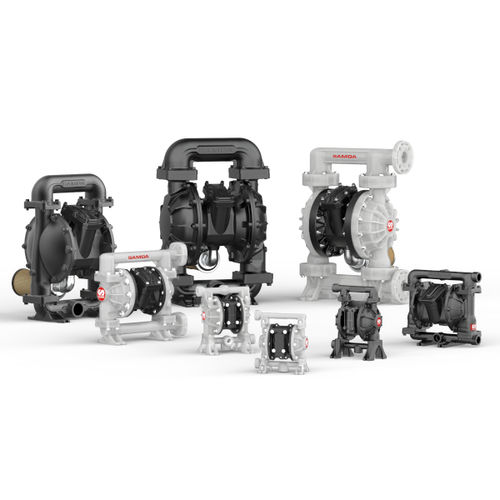

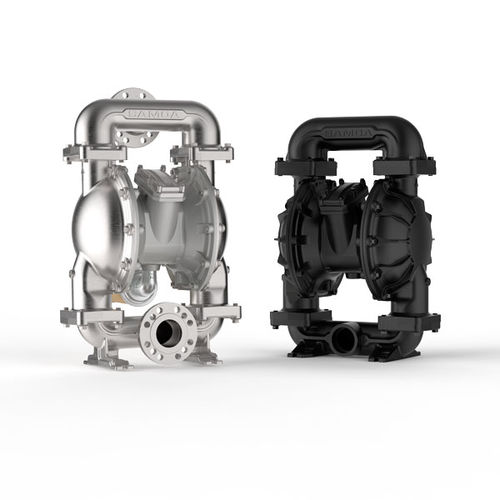

The PIVOT Series AODD Pumps ranges from 3/8″ to 3″. Available in metallic and non-metallic materials such as aluminium, ductile iron, stainless steel, polypropylene, conductive polypropylene, PVDF, and conductive acetal with a wide range of diaphragms, seats, and balls options offering broad fluid and application compatibility.

The main advantages of our PIVOT Series AODD pumps are:
• Air motor with exclusive frictionless pivot-shaft air valve resulting in:
o Larger flow delivery
o Smooth pump operation
o Reduced flow pulsation
o No pump vibration
o Low pressure start-up
o No stall
o No icing
o Easy and fast service
• Universal pump standards
o Allowing easy swap-over and upgrade of your old pumps
• Optimized design for maximum performance
• Top quality materials for long-life and reliability

توضیحات:
Fluid
water, for chemicals, slurry, for lubricants

Operation
pneumatic

Priming
self-priming, submersible

Technology
double-diaphragm

Mobility
stationary

Domain
for the paper industry, industrial, for the steel industry, for the chemical industry, for the glass industry, for water treatment, for the petrochemical industry, for the metallurgical industry, for the cosmetics industry, for public works, for foundry applications, for the construction industry, for the printing industry, for the textile industry, for maritime applications

Applications
drain, sewage, transfer, suction, process, circulation, distribution, filling, dewatering, for lubrication systems, sanitation, recirculation, for harsh environments, for printing machines, surface treatment, drainage, for hazardous locations, cleaning, unloading, recovery, high-volume, refueling, IBC, for low-pressure applications, level control, recycling, lubrication, chemical process

Material
stainless steel, cast iron, aluminum, plastic, metal, cast aluminum, polyvinylidene fluoride

Fluid specification
for AdBlue, for aggressive media, for powders, coagulant, for firefighting foam, for abrasive fluids, for solids-laden fluids, for low-viscosity fluids, for toxic fluids, flavouring, for fluids with lubricating properties, for corrosive fluids, for paper stock, cutting fluid, for mineral oil, pressure powered, for used oil, for flammable fluids, dye, for engine oil, for refrigerant fluids, for brine

Protection level
abrasion-resistant, ATEX

Other characteristics
rugged

Flow
Min.: 26.5 l/min(7.00056 us gal/min)Max.: 1,000 l/min(264.17205 us gal/min)

Pressure
Min.: 1.5 bar(21.756 psi)Max.: 8 bar(116.03 psi)

Head
8 m(26’02” )

Input diameter
Min.: 9.5 mm(0.374 in)Max.: 76 mm(2.992 in)

Output diameter
Min.: 9.5 mm(0.374 in)Max.: 76 mm(2.992 in)

Length
Min.: 151 mm(6 in)Max.: 436 mm(17 in)

Width
Min.: 202 mm(7.95 in)Max.: 575 mm(22.64 in)

Height
Min.: 237 mm(9.33 in)Max.: 905 mm(35.63 in)

Weight
76 kg(167.55 lb)
