نام محصول:

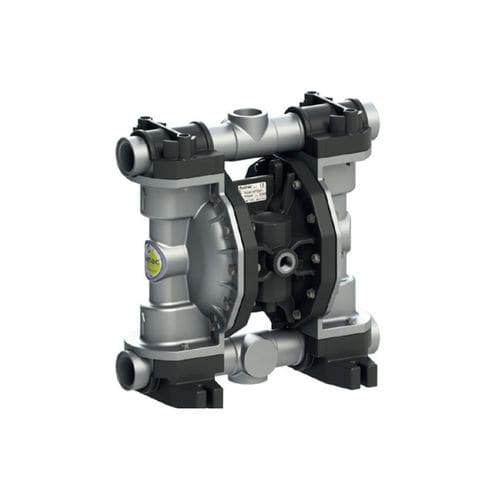

پمپ دو دیافراگم

نام انگلیسی:
Double-diaphragm pump P252

برند:
Fluimac srl

مشخصات:
To determine the compressed air needed and the size of a FLUIMAC pump, two types of information are mandatory:

The required flow rate of the fluid (Flow rate l/min)

The total prevalence (Head H)

By determining the flow rate of the fluid (Flow rate lt/min) and the head (Head H) it is possible to identify a point of intersection between the two. This point allows you to identify the quantity of compressed air necessary for the correct functioning of this type of pump; to do this it is necessary to follow the blue curve to the left. Then following the closest green curve you can see the air consumption.

توضیحات:
Fluid
water, for chemicals, for food products, air

Operation
pneumatic

Priming
self-priming

Technology
double-diaphragm

Mobility
stationary

Domain
for the chemical industry, for the pharmaceutical industry, agriculture, for the petrochemical industry, for the mining industry, for the paper industry, for the printing industry, for the automotive industry, for the textile industry, for marine applications

Applications
transfer, distribution, lift

Material
stainless steel, aluminum, PP, PVDF

Other characteristics
compact, suction, dry

Flow
Max.: 250 l/min(66.04301 us gal/min)Min.: 0 l/min(0 us gal/min)

Pressure
Max.: 8 bar(116.03 psi)Min.: 0 bar(0 psi)

Head
Max.: 80 m(262’05” )Min.: 0 m(0’00” )

Fluid temperature
Max.: 95 °C(203 °F)Min.: -20 °C(-4 °F)

Length
357 mm, 370 mm, 396 mm(14 in, 15 in, 16 in)

Width
222 mm(8.74 in)

Height
364 mm, 374 mm, 388 mm(14.33 in, 14.72 in, 15.28 in)

Weight
15 kg, 16 kg, 20 kg(33.07 lb, 35.27 lb, 44.09 lb)
