نام محصول:
پمپ دو دیافراگم
نام انگلیسی:

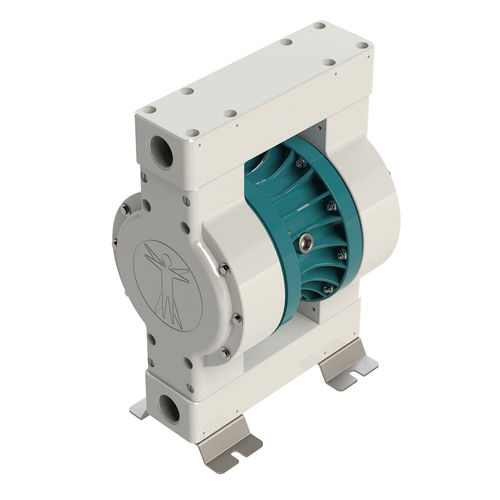

Double-diaphragm pump ASTRAsolid (DDS)
برند:
Argal Pumps
مشخصات:
ASTRAsolid (DDS) pumps share the same constructive and performing advantages as ASTRAevo pumps: a fast pneumatic exchanger increased unloading systems for performance optimization (without interfering on air consumption), and an optimized internal design for viscous and loaded liquids. They are made of UHMW-PE solid-block and available in size 1/2″ – 1″ – 1 1/2″ – 2″.
Why offering UHMW-PE solutions? ASTRAsolid pumps are not substituting but completing our current ranges. Thanks to the Ultra High Molecular Weight Polyethylene made from solid-block, ASTRAsolid pumps ensure a very high abrasion and corrosive resistance. They can operate continuously in in- or outdoor applications (with low temperature) and into explosive atmospheres (Ex-proof Zone 2).
Very high performance
Optimized air consumption
Evolved diaphragm caps
Free-ice system that also increases the performance and keeps the air consumption low
Optimized internal design for easing the transfer of viscous and charged liquids.
Very-fast pneumatic exchanger
Improved operating sensitivity (from 1 bar)
Non-stalling
PE1000: highly resistant material with low-friction coefficient and temperature range from -40°c to 70°c.
modified PTFE diaphragms inert to chemical agents
Diaphragms available in thermoplastic rubber (TPE, TPV) and reinforced elastomers (FKM, EPDM, NBR)
Ergonomic fixing
Easy maintenance
Ideal for shear sensitive liquids
Dry-running
Self-priming
توضیحات:
Fluid
wastewater, for chemicals
Operation
pneumatic
Priming
self-priming
Technology
double-diaphragm
Mobility
stationary
Domain
industrial, for water treatment
Applications
unloading
Material
polyethylene
Fluid specification
for abrasive fluids, for solids-laden fluids, for corrosive fluids, for viscous fluids
Protection level
chemical-resistant, abrasion-resistant, explosion-proof, corrosion-resistant, ATEX
Other characteristics
dry, corrosion-resistant, continuous-flow
Flow
52 l/min, 130 l/min, 375 l/min, 715 l/min(13.73695 us gal/min, 34.34237 us gal/min, 99.06452 us gal/min, 188.88302 us gal/min)
Pressure
8 bar(116.03 psi)
Fluid temperature
Max.: 70 °C(158 °F)Min.: -40 °C(-40 °F)
