نام محصول:

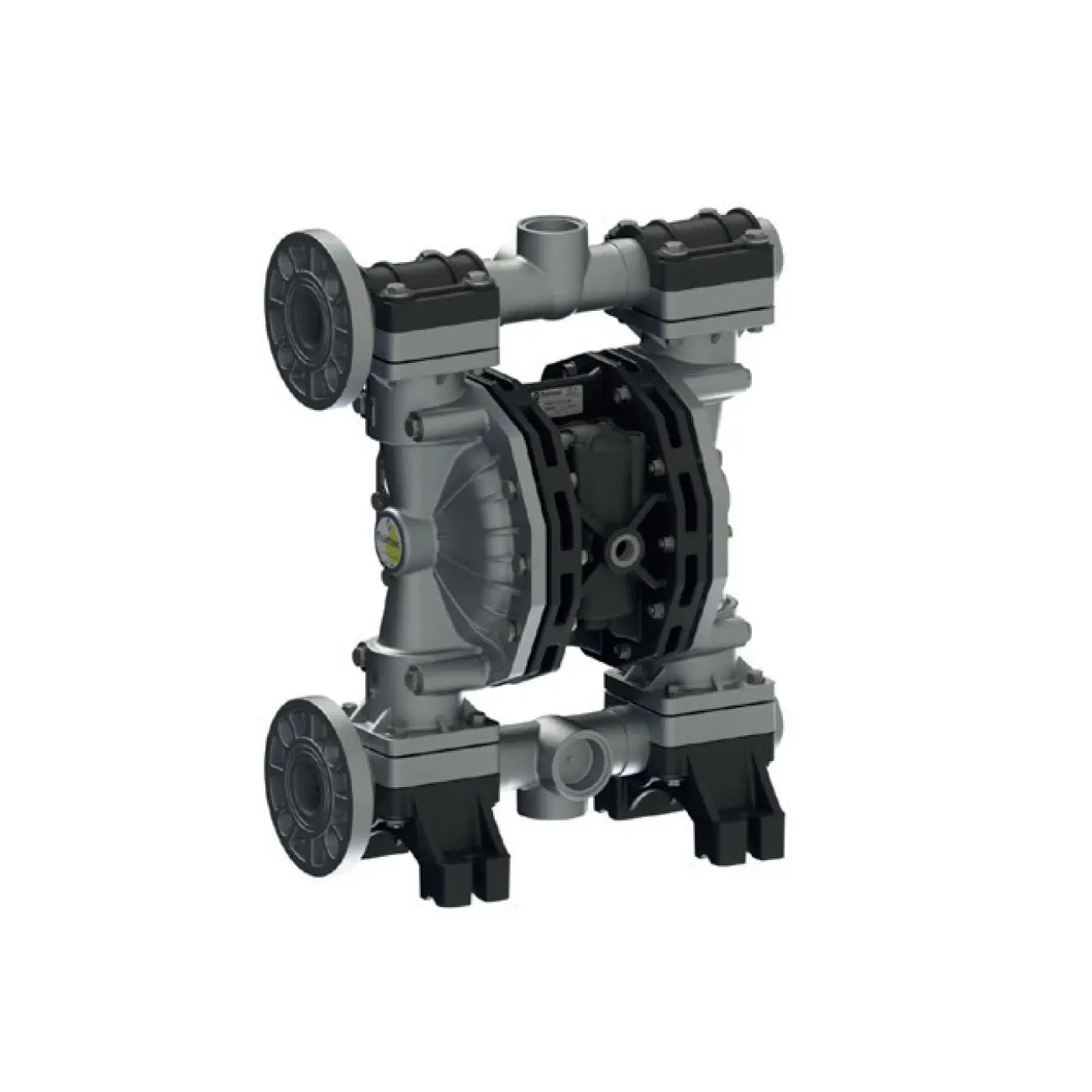

پمپ دو دیافراگمی P400
نام انگلیسی:
Double-diaphragm pump P400
l
برند:
Fluimac srl
مشخصات:
Fluid
water, for chemicals, for food products
Operation
pneumatic
Priming
self-priming
Technology
double-diaphragm
Mobility
stationary
Domain
for the chemical industry, for the pharmaceutical industry, for the petrochemical industry, for the mining industry, agriculture, for the paper industry, for the textile industry, for the printing industry, for the automotive industry, for marine applications
Applications
metering
Material
aluminum, PP, PVDF
Other characteristics
compact, suction
Flow
Min.: 0 l/min
(0 us gal/min)
Max.: 380 l/min
(100.38538 us gal/min)
Pressure
Min.: 0 bar
(0 psi)
Max.: 8 bar
(116.03 psi)
Head
Min.: 0 m
(0’00” )
Max.: 80 m
(262’05” )
Fluid temperature
Min.: -4 °C
(24.8 °F)
Max.: 65 °C
(149 °F)
Length
361 mm, 445 mm, 454 mm
(14 in, 18 in, 18 in)
Width
260 mm
(10.24 in)
Height
502 mm, 563 mm, 564 mm
(19.76 in, 22.17 in, 22.2 in)
Weight
18.2 kg, 22.2 kg, 25.3 kg
(40.12 lb, 48.94 lb, 55.78 lb)
توضیحات:
Diaphragm pumps
Fluid connections: 1” 1/2 BSP
Air connection: 1/2” BSP
Max Suction Lift Dry: 5 m
Max Suction Lift Wet: 9,8 m
Max Solid passing: 8 mm
Noise level: 78 dB
Max Viscosity: 40.000 cps
Displacement per stroke: 1200 CC~
