نام محصول:

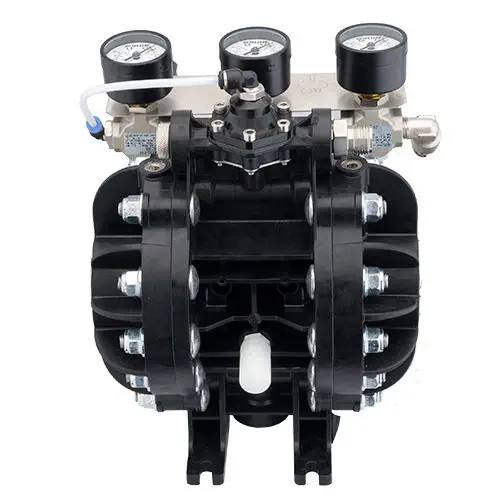

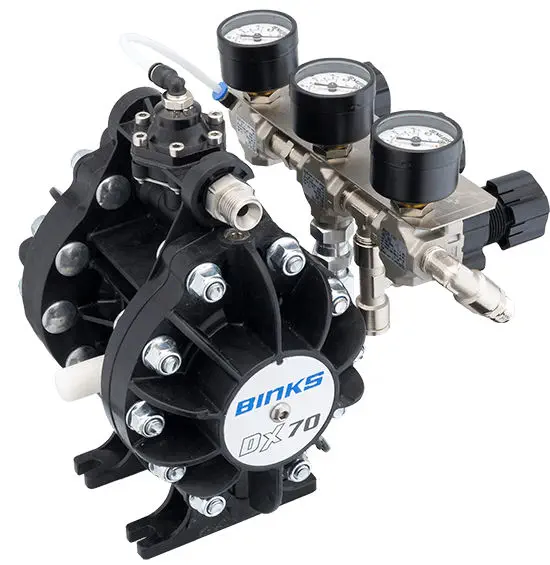

پمپ دو دیافراگمی Binks DX70

نام انگلیسی:
Double-diaphragm pump Binks DX70

برند:
CARLISLE FLUID TECHNOLOGIES

مشخصات:
Fluid
paint, for adhesives

Operation
air-driven

Technology
double-diaphragm

Mobility
stationary

Domain
industrial, for agricultural applications, for the automotive industry, for marine
applications

Applications

metering

Flow
Min.: 0 l/min
(0 us gal/min)

Max.: 4.2 l/min
(1.10952 us gal/min)

Pressure
Min.: 0 bar
(0 psi)

Max.: 7 bar
(101.526 psi)

Head
6.6 m
(21’07” )

Input diameter
0.4 mm
(0.016 in)

Output diameter
0.4 mm
(0.016 in)

Weight
2.2 kg
(4.85 lb)

توضیحات:

The DX70 is a high specification, air powered, 1:1 ratio, double diaphragm pump specifically developed for the direct supply of paints and materials to spray guns. The pump features a unique diaphragm no-crease shape for a long and durable working life DX70 also includes a “built-in” fluid regulator which ensures a constant and virtually pulse free fluid delivery, for direct feed to spray guns without the expense and complications of an additional fluid regulator or surge chamber.

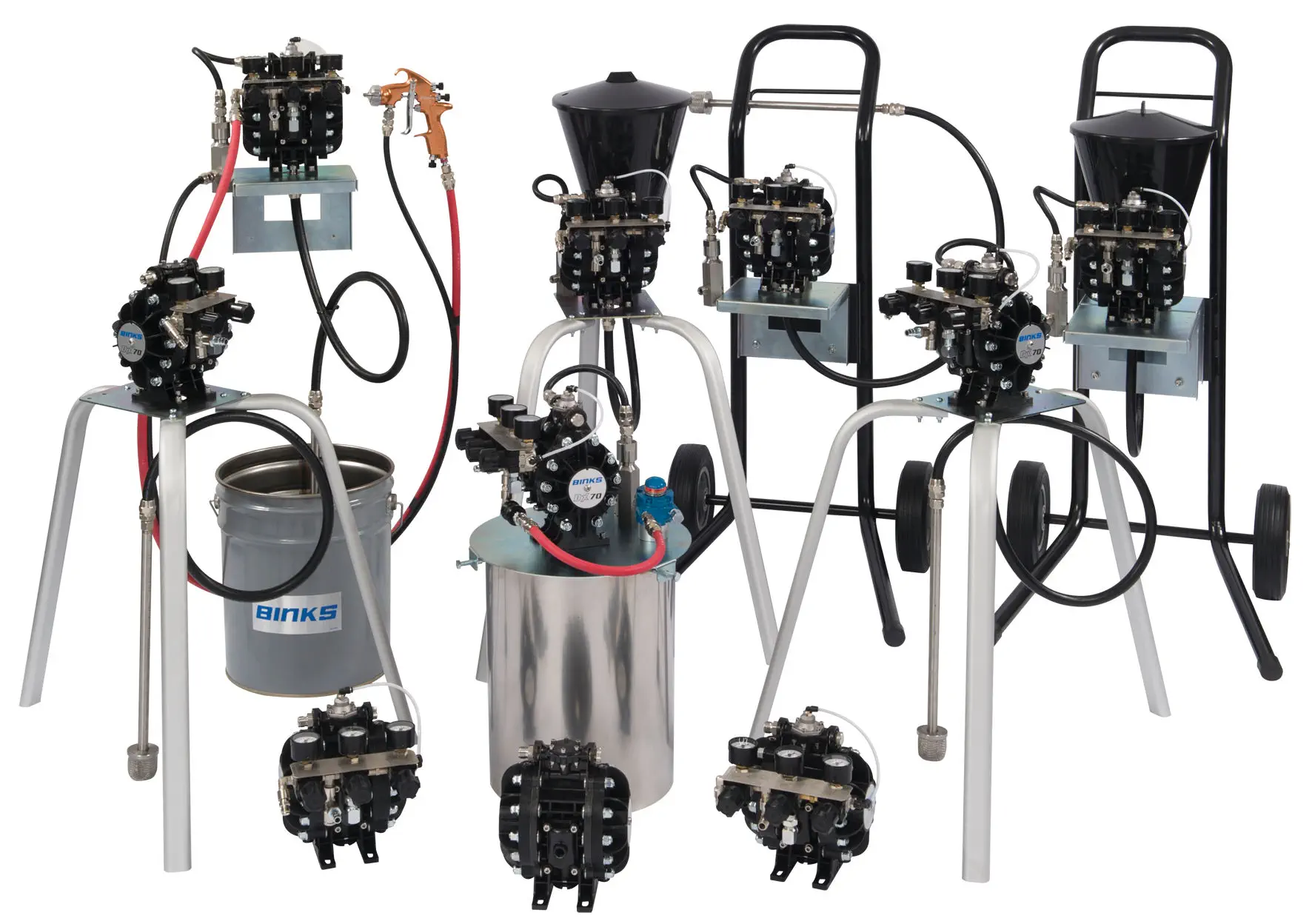

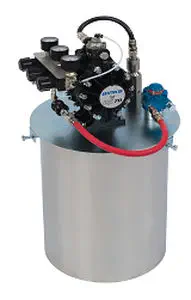

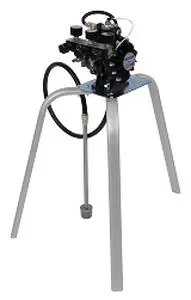

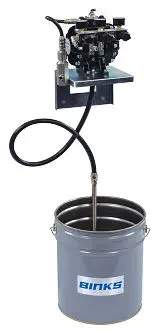

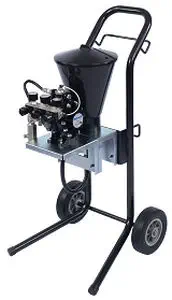

The Binks DX70 range features bare pumps, assembled pump packages and complete “ready to spray” outfits matched with our spray guns. Binks DX70 is perfect for use with ALL TYPES of spray gun technologies including, Conventional, Compliant Trans-Tech©, HVLP, LVLP and low pressure Electrostatic spray guns.

Acetal pump body with stainless steel balls and soft seats for universal paint compatibility including ceramic glaze coatings
The unique diaphragm design and built-in fluid regulator provide consistent pressure and readily adjustable paint flow
The Non-stall air valve provides smooth, quiet and surge free paint delivery up to 1000 cc/ minute

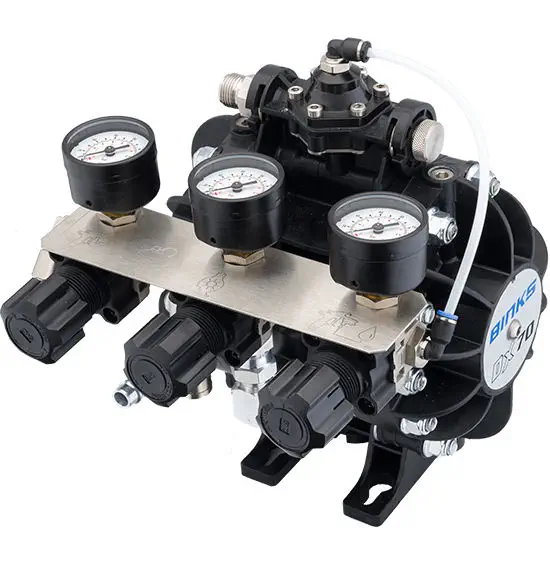

Clearly labelled Air regulators provide independent control of pump and spray gun fluid and air pressures
Quick release air, fluid inlet and outlet connections for faster maintenance

APPLICATIONS

Woodworking and Joinery
Aerospace Industry
Agricultural and Off Road
Potteries and Ceramic Glaze*
Trade Coaters and Jobbers
Marine Industry
Truck and Bus
Rail and Transport
Plus Many Others
