نام محصول:
پمپ دوغاب
نام انگلیسی:

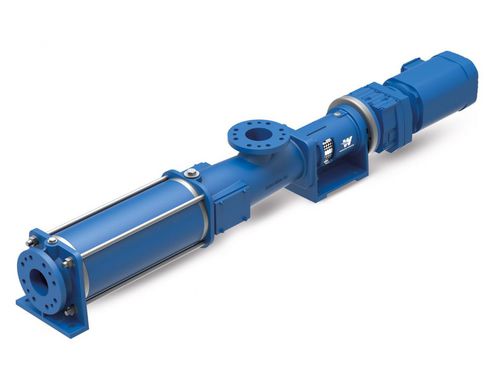

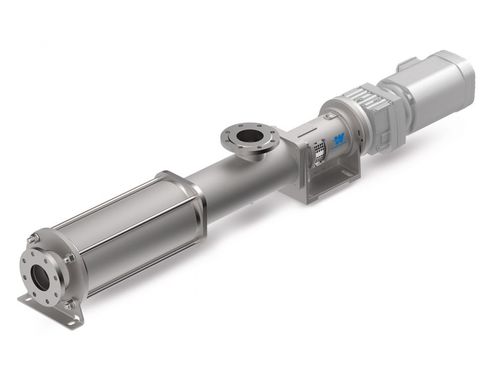

Slurry pump KL-S
برند:
WANGEN PUMPEN
مشخصات:
The progressing cavity pump serie WANGEN KL-S are basic products of Pumpenfabrik Wangen. The clear benefit is in the low lifecycle costs. This universally usable pump works with almost every low and extrem high viscous mediums (1 mPas -3.000.000 mPas).
Benefits and Characteristics
excellent price/performance ratio
low Life Cycle Costs
large viscosity range
good pumping performance even against high pressure
high operational reliability
consistant diameters at joint connections for constant flow-rates
consistent modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
almost pulsation-free conveyance
optimum service life even with difficult media
optionally with base plate
insensitive to foreign matter
good pumping performance even with abrasive and fibrous materials in the media
high suction lift (self-priming under certain conditions)
constant flow speed in the suction housing prevents desposits or sedimentation
low-pulsation, continuous conveyance independent of pressure and viscosity
easy to maintain thanks to large cleaning openings
توضیحات:
Fluid
for wastewater, for chemicals, slurry, oil
Operation
with electric motor
Priming
self-priming
Technology
progressive cavity
Mobility
stationary
Domain
industrial, for the chemical industry, for wastewater treatment, for the petrochemical industry, agriculture, for the paper industry, for methanizers
Applications
transfer, metering, service, feed, filling, suction, conveying
Other characteristics
suction, large, modular
Flow
Max.: 560 m³/h(19,776.21336 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
Max.: 48 bar(696.181 psi)Min.: 0 bar(0 psi)
