نام محصول:
پمپ دوغاب
نام انگلیسی:

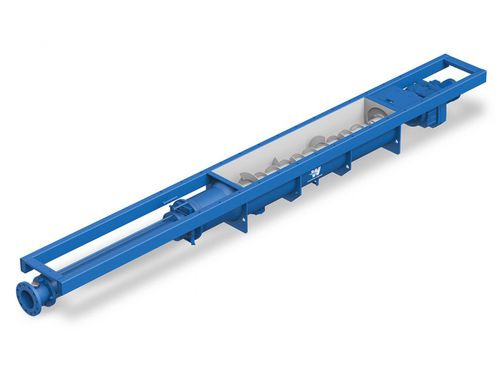

Slurry pump KL-RS
برند:
WANGEN PUMPEN
مشخصات:
Pumps of the WANGEN KL-RS series are hopper silo pumps for conveying and dosing dewatered sewage sludge with a high-solids content (DS) of 15% to 45%. These features make silo discharge pumps of the type KL-RS an indispensable core aggregate in modern sewage treatment plants.
WANGEN PUMPEN’s quality promise: Extremely robust and reliable pumps, designed for extra long lifepan.
Benefits and Characteristics
excellent price/performance ratio
low Life Cycle Costs
large viscosity range
good pumping performance even with abrasive and fibrous materials in the media
high operational reliability
high pressure performance
long service life
configuration and length according to the customer’s wishes
modular design for high flexibility and short downtimes for maintenance and repairs
almost pulsation-free conveyance
low servicing costs
optimum service life even with difficult media
various hopper sizes available
robust bearing pedestal with close-coupled drive and self-centering of the drive shaft (optionally with bare shaft)
insensitive to foreign matter
maintenance-friendly
modular design for short downtimes
direct flange-fitting of the pump to the bottom of the silo
double, maintenance-free shaft seal
rotor/stator quick-change facility
slide valves at the end of the hopper tunnel enable inspection and monitoring work to be carried out without having to dismantle the pump
split frame design for installation in confined conditions
shut-off slide valves enable changes of rotor/stator when the silo is full
توضیحات:
Fluid
water, slurry
Operation
with electric motor
Priming
self-priming
Technology
progressive cavity
Mobility
stationary
Domain
industrial, for water treatment, for oil industry applications, agriculture, for methanizers
Applications
discharge, dosing, service, sewage, treatment, conveying
Protection level
maintenance-free, robust
Other characteristics
double, large, modular, close-coupled
Flow
Max.: 150 m³/h(5,297.20001 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
Max.: 48 bar(696.181 psi)Min.: 0 bar(0 psi)
