نام محصول:
پمپ دوغاب
نام انگلیسی:

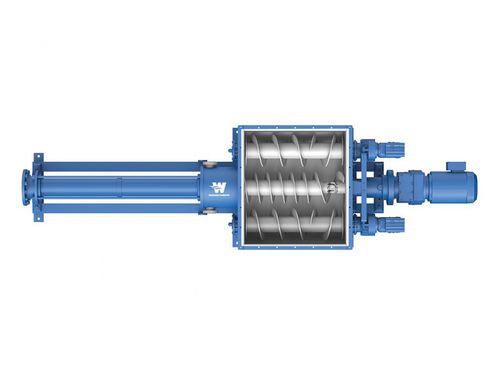

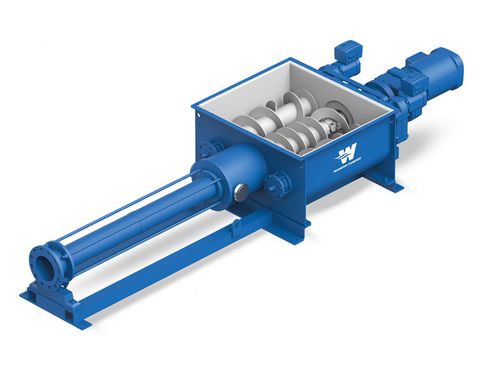

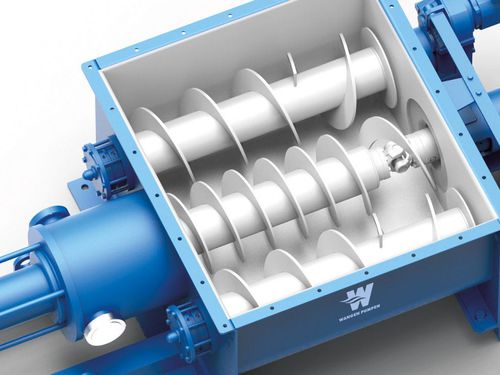

Slurry pump KL-R Triplex
برند:
WANGEN PUMPEN
مشخصات:
Pumps of the WANGEN KL-R Triplex series impress with their consistent dosing option, as an intermittent input is compensated by the buffer volume in the collecting container. No bridge building. The small space requirement and large receiving vessel are a result of the low construction and the large volume of the container. The best pump for dewatered sludge in waste water treatment plants. Highest robust design quality, what WANGEN pumps are well known for.
Very robust pump, ideal for pumping dewatered sewage sludge and therefore ideally suited for use in the sludge to energy sector. Developed for extra long lifespan.
Benefits and Characteristics
buffer volume up to 10 m³ possible
modular design for high flexibility and short downtimes for maintenance and repairs
constant metering because the discontinuous input is compensated by buffer volume in the collecting container
unattended operation possible
excellent metering, important for dryer and incinerator operation
easy to maintain thanks to large cleaning openings
low-pulsation, continuous conveyance independent of pressure and viscosity
optimum service life even with difficult media
high operational reliability
high pressure performance
high dosing accuracy, also at low speed
low Life Cycle Costs
low construction with large container volume
little space required, with large collecting container
توضیحات:
Fluid
slurry
Operation
with electric motor
Priming
self-priming
Technology
progressive cavity
Mobility
stationary
Domain
industrial, for water treatment, for oil industry applications, agriculture, for methanizers
Applications
transfer, handling, sewage, treatment, settling
Protection level
robust
Other characteristics
small, large, modular, triplex
Flow
Max.: 80 m³/h(2,825.17334 ft³/h)Min.: 0 m³/h(0 ft³/h)
Pressure
Max.: 48 bar(696.181 psi)Min.: 0 bar(0 psi)
