نام محصول:
پمپ دوغاب
نام انگلیسی:
Slurry pump SH
برند:
Shijiazhuang Shiyi Pump Inustry Co.,Ltd
مشخصات:

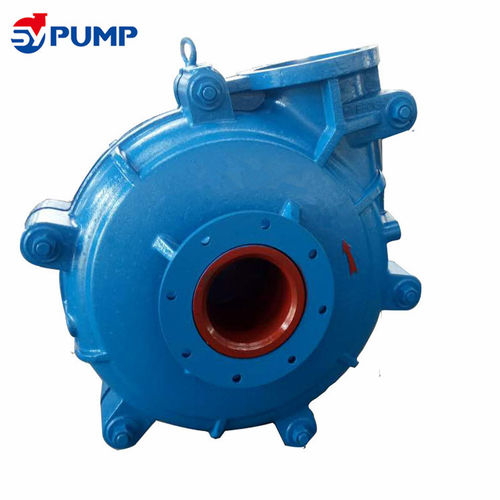

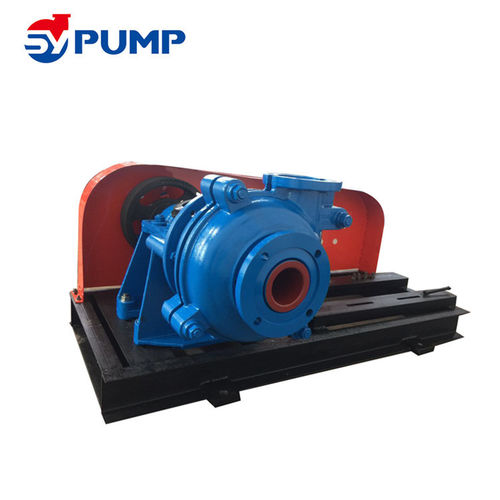

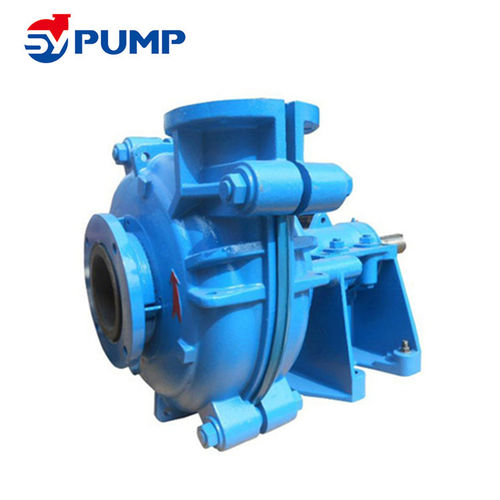

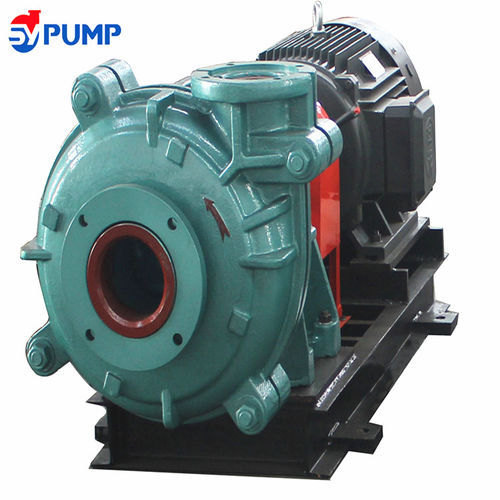

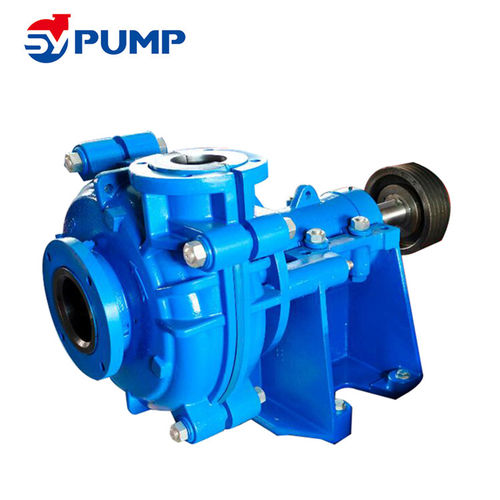

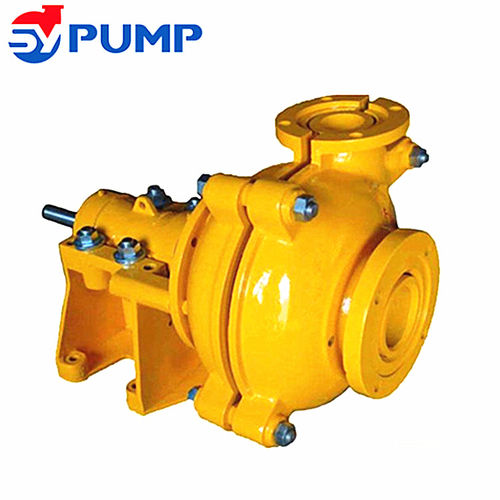

SH pump series are horizontal, cantilevered, single-stage centrifugal pump. It is designed for pumping tough slurries which is high-abrasive or corrosivre and high-density. The horizontal pumps maintain high efficiency over the wear life of its components. The liner and impeller of this model can be changeable and material can be either anti-abrasive metal or rubber.
Features:
Bearing assembly—A large diameter shaft with short overhang minimizes deflection and contributes in to long bearing life.
Liners—Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer seal rings back all liner joints.
Impeller—Front and rear shrouds have pump out vanes that reduce re-circulation and seal contamination. Hard metal and molded elastomer impellers are completely interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
Throat bush—Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
Specification:
◆ Size
1”-18” (discharge)
25mm-450mm
◆Capacity:
To 5000m³/h
To 22000 gpm
◆Heads
To 73m
To 240ft
Applications:
◆ Mineral Processing
◆ Coal Washing
◆ Power Plant
◆ Cyclone Feeding
◆ Metallurgy
◆ Heavy Minerals
◆ Chemical Processing
◆ Tailings
◆ Mill Discharge
◆ Sugar Beet
◆ Paper and Pulp
◆ Diamond Concentration
◆ Flotation Processing
◆ Gravel Sand Washing
◆ Quarry Plant
◆ Dredging
توضیحات:
Fluid
slurry, acid
Operation
with electric motor
Priming
normal priming
Technology
centrifugal
Domain
industrial, for the mining industry, for the steel industry
Applications
discharge, transport
Other characteristics
horizontal mount, mechanical, cantilevered, seal
Flow
Min.: 12.6 m³/h(444.9648 ft³/h)Max.: 5,400 m³/h(190,699.2003 ft³/h)
Pressure
Min.: 0.6 bar(8.702 psi)Max.: 7 bar(101.526 psi)
Head
Min.: 6 m(19’08” )Max.: 68 m(223’01” )
Power
Min.: 2.2 kW(2.99 hp)Max.: 1,200 kW(1,631.55 hp)
