نام محصول:
پمپ دوغاب
نام انگلیسی:

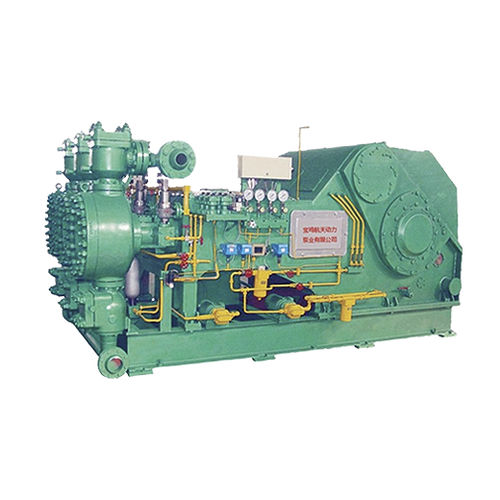

Slurry pump GMB
برند:
SHAANXI AEROSPACE POWER HI-TECH CO.,LTD
مشخصات:
Diaphragm Pump
Mine and oilfield pumps
Overview
Suitable for alumina, electric power, cement, coal chemical industry, mining and other industries as a reciprocating volumetric pump. Specialized in conveying high concentration slurry at over 75% concentrate ratio, less than 2mm particles dimension and less than 120 ℃ temperature, easy to precipitate, with strong abrasion and strong corrosion.
Feature
Adopt the long life diaphragm with oil, high temperature, corrosion and fatigue resistance
Stable and reliable diaphragm stroke control system
Sensitive and perfect alarm technology of diaphragm damage detection.
Performance
Structural Type: Two horizontal double-action cylinders or triplex horizontal single-action cylinders reciprocating plunger pump
Structural Design: in accordance with GB/T9234
Transmission Medium: mud, pulp, mortar
توضیحات:
Fluid
slurry, oil
Operation
electric
Technology
diaphragm
Mobility
stationary, mobile
Domain
industrial, chemical
Applications
for control, conveying
Other characteristics
triplex
Flow
Min.: 0 m³/h(0 ft³/h)Max.: 700 m³/h(24,720.26671 ft³/h)
Pressure
3,625 psi
Fluid temperature
Min.: 0 °C(32 °F)Max.: 120 °C(248 °F)
